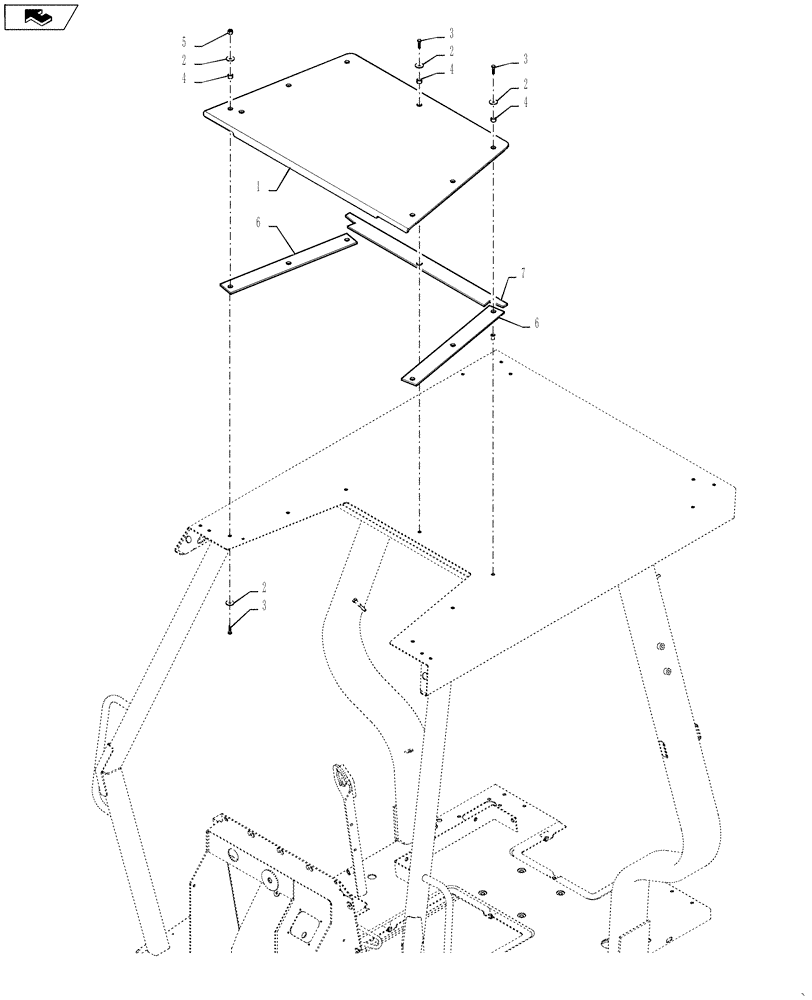

Запчасти Case 570NXT (90.119.AA) - CANOPY SUNSHADE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86982447

COVER

Sunshade

1шт.

2

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

11шт.

3

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

7шт.

4

86982660

SPACER,12.55mm ID x 14.2mm OD x 10mm L

10 X 8

7шт.

5

832-10406

NUT,M6 x 1, Cl 8

4шт.

6

86982494

SEAL

Sunshade Side

2шт.

7

86982493

SEAL

Sunshade Rear

1шт.
