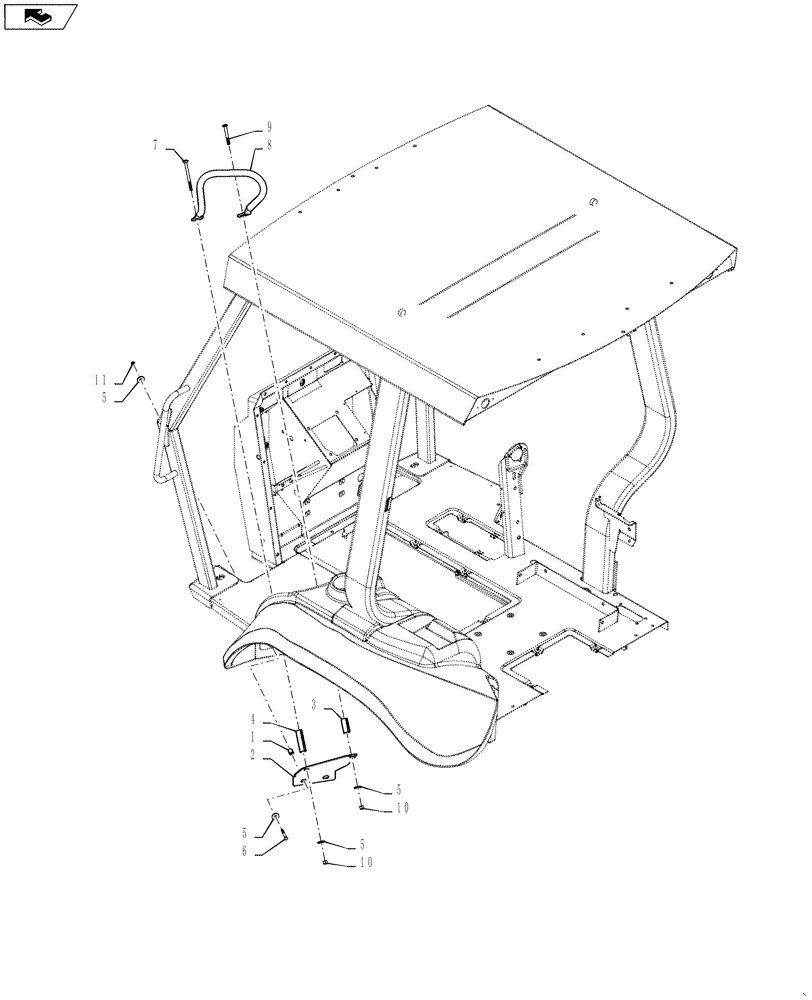

Запчасти Case 570NXT (90.116.AP) - HANDLE GRIP CANOPY OPTION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87580819

SPACER

Fender

2шт.

2

87580820

BACKING PLATE

Handle Support

1шт.

3

87580818

SPACER

Grab Handle Short

1шт.

4

87580815

SPACER

Grab Handle Long

1шт.

5

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

M10 Flat

6шт.

6

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

7

9780090

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 125mm, Cl 8.8

1шт.

8

87601383

GRAB RAIL

Handle Canopy

1шт.

9

87646163

CARRIAGE BOLT,Short Sq Nk, M10 x 1.5 x 100mm, Cl 8.8

1шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.
