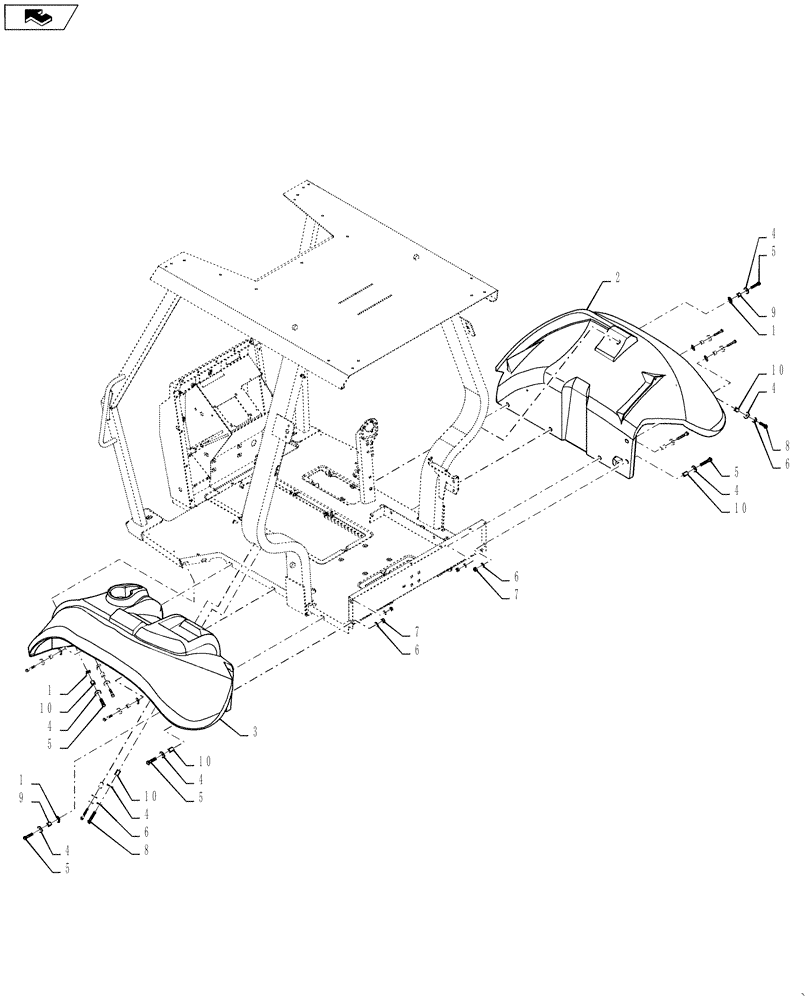

Запчасти Case 570NXT (90.116.AC) - FENDERS CANOPY OPTION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

833-40408

NUT,M8, U

Spring

6шт.

2

87573625

FENDER

RH Rops

1шт.

3

87573629

FENDER

LH Rops

1шт.

4

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

M10 Flat

14шт.

5

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

10шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

8

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

4шт.

9

87593433

SPACER,12.6mm ID x 16mm OD x 14mm Thk

Fender

4шт.

10

87580819

SPACER

Fender

10шт.
