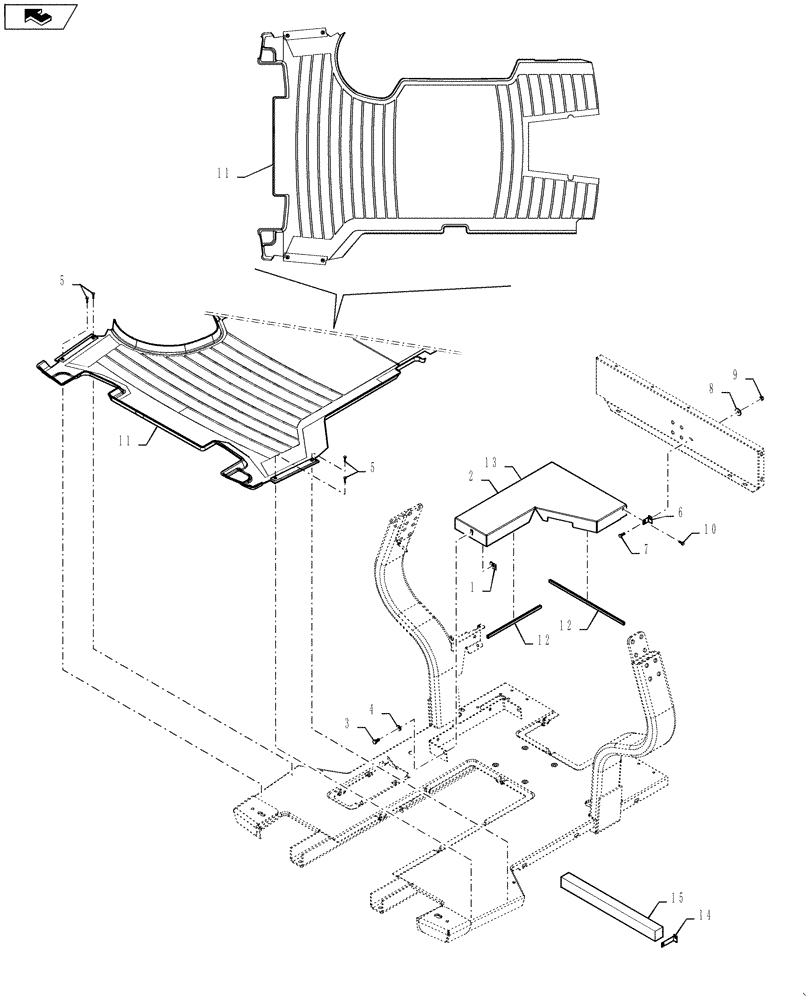

Запчасти Case 570NXT (90.110.BD) - CAB FLOOR COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

833-40310

NUT,M10, U

Spring

1шт.

2

47365461

FLOOR

Rear CE Gray

1шт.

3

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

5

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

4шт.

6

436217A2

BRACKET

Floor Closure

1шт.

7

514-644

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

8

495-81001

WASHER,5/16"

1шт.

9

829-1708

NUT,M8, Cl 10

1шт.

10

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

1шт.

11

87684712

FLOOR MAT

Cab

1шт.

12

191046A1

ORNAMENTAL STRIP

Trim

2шт.

13

191047A1

MOLDING

Trim

1шт.

14

87680621

BRACKET

Floor Closure

1шт.

15

87681792

SEAL

Foam

1шт.
