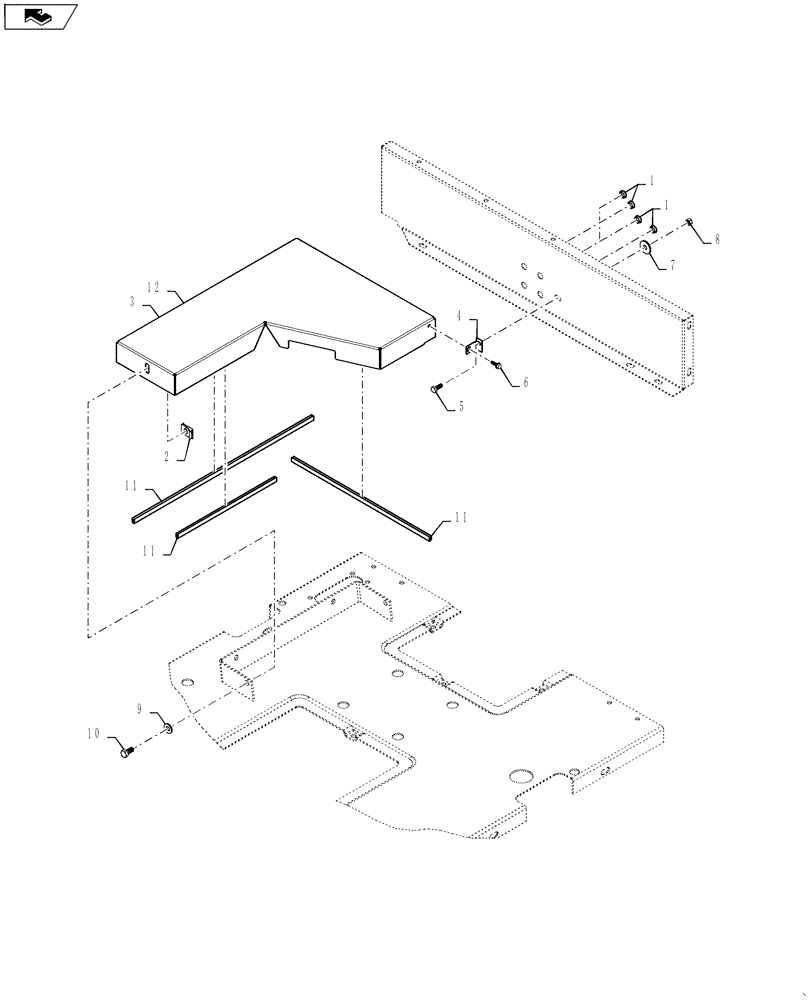

Запчасти Case 570NXT (90.110.BC) - FLOOR COVER 3000 LB COUNTERWEIGHT ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

353-436

PLUG,.593" Hole, Nylon

Black

4шт.

2

833-40310

NUT,M10, U

1шт.

3

47365461

FLOOR

Rear CNH CE Gray

1шт.

4

436217A2

BRACKET

Floor Closure

1шт.

5

87646159

BOLT,Hex, M8 x 20mm, Cl 8.8

M8 X 20

1шт.

6

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

1шт.

7

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

10.65 X 31

1шт.

8

829-1708

NUT,M8, Cl 10

1шт.

9

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

10.65 X 23

1шт.

10

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

11

191046A1

ORNAMENTAL STRIP

Trim

2шт.

12

191047A1

MOLDING

Trim

1шт.

13

225101A1

CONTACT

1шт.

14

435637A2

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9

3шт.

15

833-40406

NUT,M6, U

3шт.
