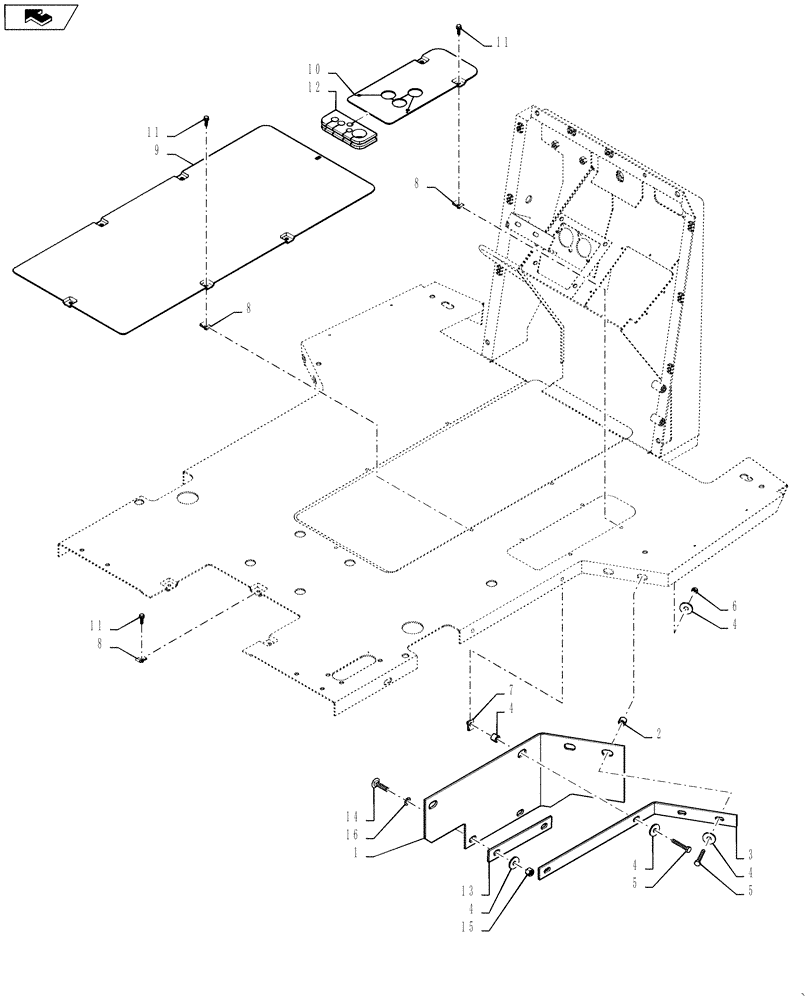

Запчасти Case 570NXT (90.105.AB) - FLOOR PLATE MUDGUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87592763

GUARD

Mud

1шт.

2

87593433

SPACER,12.6mm ID x 16mm OD x 14mm Thk

Fender

2шт.

3

87592762

SECURING STRAP

1шт.

4

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

8шт.

5

614-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8, Full Thd

4шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

7

833-40408

NUT,M8, U

2шт.

8

833-40406

NUT,M6, U

13шт.

9

234913A1

LARGE PLATE

Front Floor

1шт.

10

87436076

COVER

Floor Plate

1шт.

11

87310096

BOLT,Hex, M6 x 25, Cl. 8.8, W/ Washer

3шт.

11

87310152

BOLT,M6 x 16 Full SST BLO

10шт.

12

393623A1

GROMMET

Rubber

1шт.

13

362557A1

STRIP

Reinforcing Bar

1шт.

14

43473

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

16

368417A1

WASHER

10mm

2шт.
