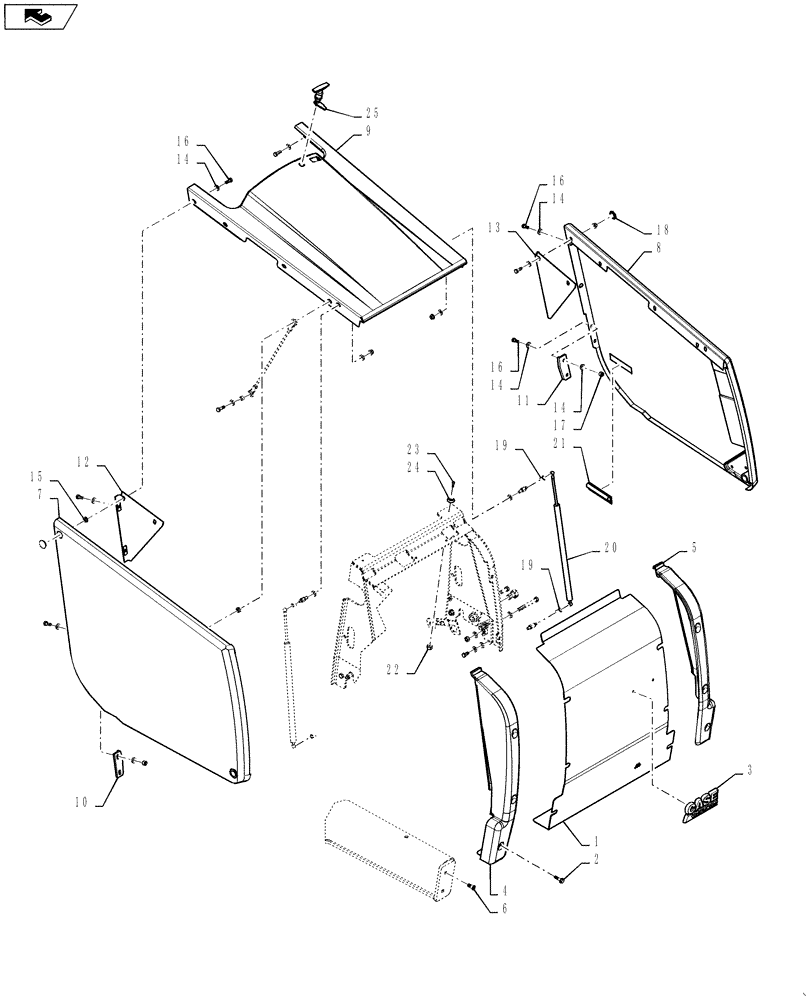

Запчасти Case 570NXT (90.100.AU) - HOOD PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87585167

RADIATOR GRILLE

Front Grill

1шт.

2

392828A2

BOLT,M10-1.5 x 40mm L W/CAPTURED WASHER

6шт.

3

84478049

EMBLEM

Case

1шт.

4

87719495

BUMPER

RH Front

1шт.

5

87719497

BUMPER

LH Front

1шт.

6

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

2шт.

7

87444147

PANEL, SIDE

RH Case Power Tan

1шт.

8

87444148

PANEL, SIDE

LH Case Power Tan

1шт.

9

87594903

ENGINE HOOD

Tilt

1шт.

10

D143714

SUPPORT

RH Side Panel

1шт.

11

D143715

SUPPORT

LH Side Panel

1шт.

12

362607A1

SUPPORT

RH Brace Side Panel

1шт.

13

362609A1

SUPPORT

LH Brace Side Panel

1шт.

14

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

8шт.

15

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

8шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

8шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

18

D140267

PLUG,30.16mm OD

Hole

2шт.

19

F44883

CLIP,DIN 71805 - S10

Gas Spring

4шт.

20

114980A1

GAS STRUT

Spring

2шт.

21

183168A1

HANDLE

Side Panel Lift

1шт.

22

231-14109

LOCK NUT,#10-24, GB

2шт.

23

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

2шт.

24

109879A1

SPACER,5.5mm ID x 30mm OD

2шт.

25

175599A1

LATCH

T Handle

1шт.
