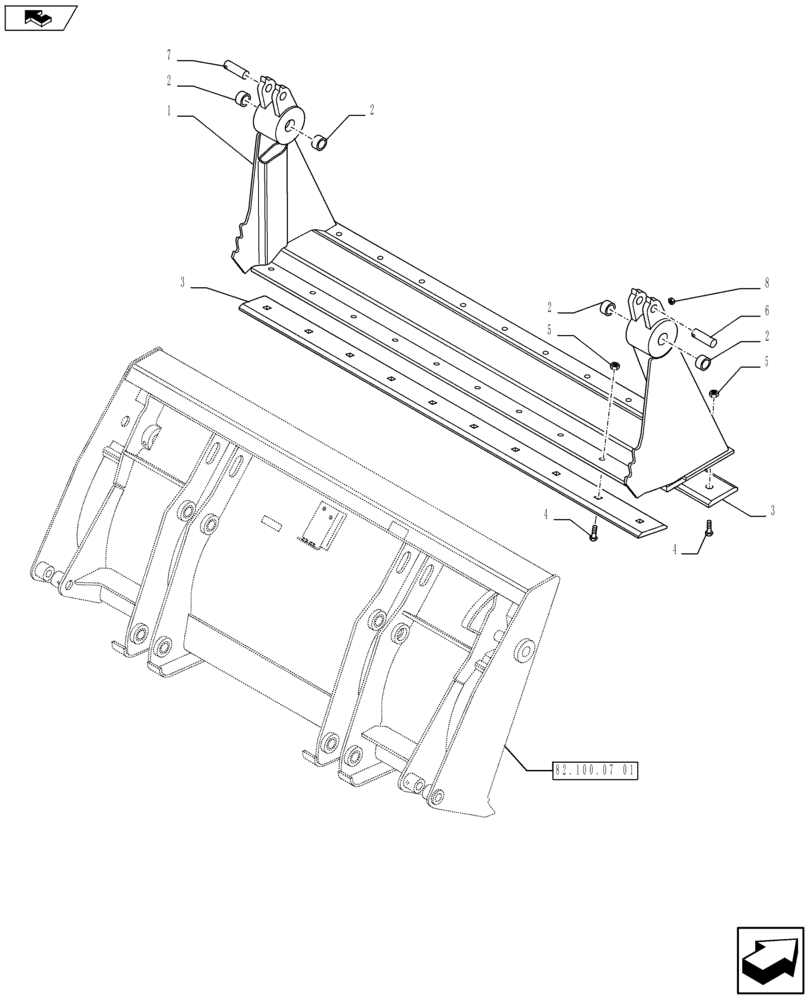

Запчасти Case 570NXT (82.300.AN[05]) - LOADING BUCKET 4X1, 82" (82) - FRONT LOADER & BUCKET

1

175156A1

CLAMSHELL BUCKET

1шт.

2

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

4шт.

3

142300A1

CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2083mm L

2шт.

4

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

20шт.

5

29-1012

NUT,3/4"-10, G8

20шт.

6

D51390

PIVOT,47.5mm ID, 31.95mm ID

RH

1шт.

7

D51389

PIVOT,47.5mm ID, 31.95mm ID

LH

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

8шт.
