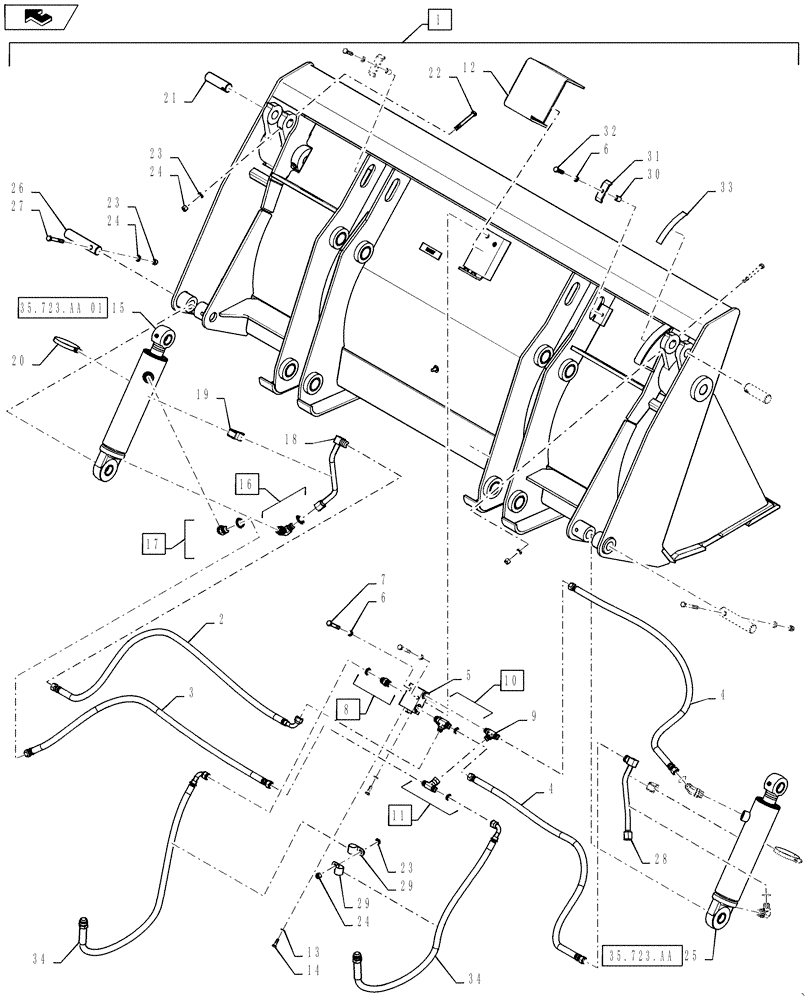

Запчасти Case 570NXT (82.300.AN[03]) - LOADER BUCKET 82 INCHES 4 IN ONE (82) - FRONT LOADER & BUCKET

1

47802379

4 IN 1 BUCKET,82" L

82 Inch

1шт.

2

367352A1

HYDRAULIC HOSE

4 In One Bucket

1шт.

3

353103A1

HYDRAULIC HOSE

82 Inches 4 In One Bucket

1шт.

4

353167A1

HYDRAULIC HOSE

82 Inches 4 In One Bucket

2шт.

5

325465A2

VALVE, CHECK

Pilot

1шт.

6

892-11010

LOCK WASHER,M10

Spring

4шт.

7

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl O-Ring

1шт.

9

218-5650

TEE,37 Degree, 3/4"-16, 9/16"-18 O-Ring Run, 3/4"-16

Incl Nut Washer And O-Ring

1шт.

10

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl O-Ring

1шт.

11

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

Incl O-Ring

1шт.

12

86981762

GUARD

Valve

1шт.

13

892-11008

LOCK WASHER,8mm ID

Spring

2шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

15

87455458

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.2mm Bore, 230.6mm Stroke

Clam LH 76.2

1шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl O-Ring

2шт.

17

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl O-Ring

2шт.

18

192352A1

HYD TUBE

LH Cylinder

1шт.

19

D38648

BLOCK

Saddle Clamp

2шт.

20

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

21

D51392

PIN,31.72mm OD x 101.6mm L

Bucket

2шт.

22

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

25

87455459

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.2mm Bore, 230.6mm Stroke

Clam RH 76.2

1шт.

26

D51393

PIN,31.72mm OD x 152.4mm L

Zinc Plated

2шт.

27

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

28

192345A1

HYD TUBE

RH Cylinder

1шт.

29

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

30

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

Split

2шт.

31

D143846

CLAMP

Hose

2шт.

32

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

33

321-1708

DECAL

Bucket

1шт.

34

356743A1

HYDRAULIC HOSE,12.7mm ID x 1170mm L

4 In One Bucket

2шт.

47837450

KIT

Repair Kit, Gusset Plates, 4 in 1 Bucket

1шт.
