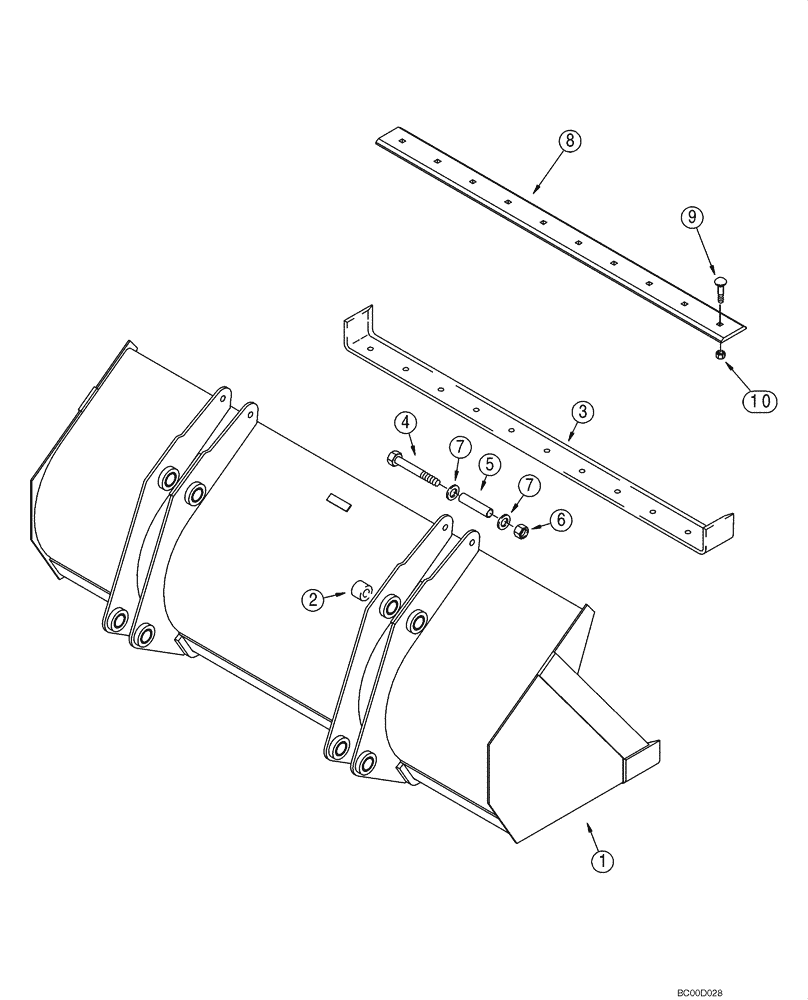

Запчасти Case 570NXT (82.300.AN[01]) - LOADER BUCKET (BOLT ON CUTTING EDGE) 82 INCHES (82) - FRONT LOADER & BUCKET

1

84422630

BUCKET,82 Inch W/ Cutting Edge

(Bolt on Cutting Edge) 82 INCHES, CNH CE Gray Incl 2 - 8

1шт.

2

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

8шт.

3

132988A1

CUTTING EDGE

1шт.

4

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

2шт.

5

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

Chain Hook

2шт.

6

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

8

411661A1

CUTTING EDGE,Bolt On, 10 Hole, 152mm W x 2113mm L

Blade

1шт.

9

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

10шт.

10

29-1012

NUT,3/4"-10, G8

10шт.
