(82.100.AG) - FRAME - LOADER LINKAGE

Запчасти Case 570NXT (82.100.AG) - FRAME - LOADER LINKAGE (82) - FRONT LOADER & BUCKET

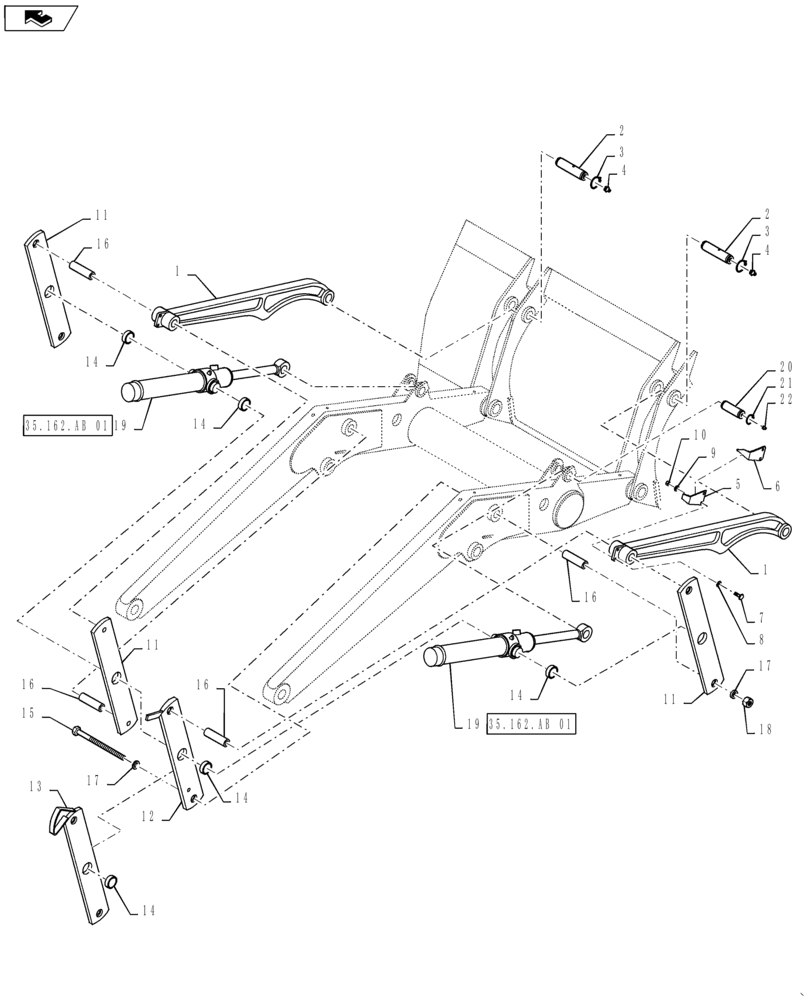

Схема запчастей Case 570NXT - (82.100.AG) - FRAME - LOADER LINKAGE (82) - FRONT LOADER & BUCKET
15
13
10
home
19
7
1
5
3
2
18
2
8
4
14
22
14
12
16
16
19
6
14
14
17
35.162.ab 01
4
14
35.162.ab 01
11
16
11
9
21
3
17
16
1
20
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

331620A1

PITMAN

Bucket, Left-Hand and Right-Hand

2шт.

2

118901A1

PIN,40mm OD x 180mm L

Pivot 40mm

2шт.

3

800-44040

SNAP RING,M40, Ext

4шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

5

D121194

POINTER

Indicator

1шт.

6

250851A1

POINTER

Plate

1шт.

7

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

9

892-11008

LOCK WASHER,8mm ID

2шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

11

139180A1

LINK ASSY.

Bucket Cylinder, Outer Right-Hand; Inner and Outer Left-Hand

3шт.

12

139235A1

PITMAN

Bucket Cylinder, Inner Right-Hand; With Extra Hole For Antirollback Rod

1шт.

13

139195A1

PITMAN

Bucket Cylinder, Inner Right-Hand; With Extra Hole For Antirollback Rod

1шт.

14

D151034

BUSHING,50.23mm ID x 60mm OD x 25.4mm L

One End Closed, Years: -21-APR-15

2шт.

14

47865950

BUSHING,50.26mm ID x 59.98mm OD x 25.4mm L

One End Closed, Start Year: 21-APR-15

2шт.

15

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

16

D132076

SPACER,23.75mm ID x 38.07mm OD x 135mm L

Bushing

4шт.

17

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

18

829-1420

NUT,M20, Cl 10

4шт.

19

87609669

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 522.3mm Stroke

Power Tan Loader Bucket Dump

2шт.

20

87724438

GROOVED PIN,40mm OD x 138.3mm L

Bucket Cylinder

2шт.

21

800-44040

SNAP RING,M40, Ext

4шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
