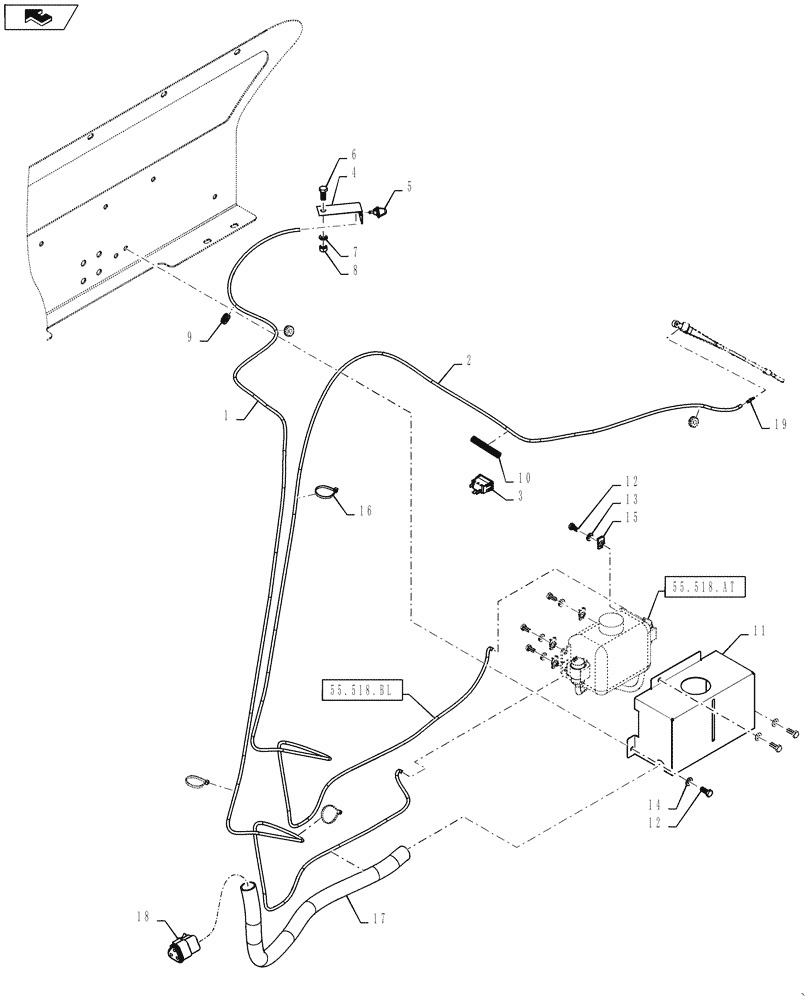

Запчасти Case 570NXT (55.518.AP) - WINDSHIELD WASHER HOSES AND MOUNTING PARTS (55) - ELECTRICAL SYSTEMS

1

84521872

HOSE

Washer Fluid Rear

1шт.

2

84521867

HOSE

Washer Fluid front

1шт.

3

144900A1

WINDSHIELD WASHER SW

Rocker

1шт.

4

305818A1

SUPPORT

Bracket Nozzel Support

1шт.

5

E43769

SPRAY

Nozzel

1шт.

6

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

7

892-11010

LOCK WASHER,M10

Spring

1шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

9

87442448

GROMMET

Rubber

3шт.

10

408965A1

GUARD

Washer Hose Rear Upper

1шт.

11

47369991

BRACKET

Washer Bottle Gray

1шт.

12

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

13

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

8.80 X 17

4шт.

14

86981722

WASHER,9mm ID x 20mm OD x 1.6mm Thk

9 X 20 X 1

3шт.

15

833-40408

NUT,M8, U

Spring

4шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

Black 7 - 8 Inches

3шт.

17

87726951

HOSE PROTECTION,26.3mm ID x 1200mm L

Guard

1шт.

18

84522731

JUMPER

Washer Bottle

1шт.

19

84562347

COUPLING

Hose

1шт.
