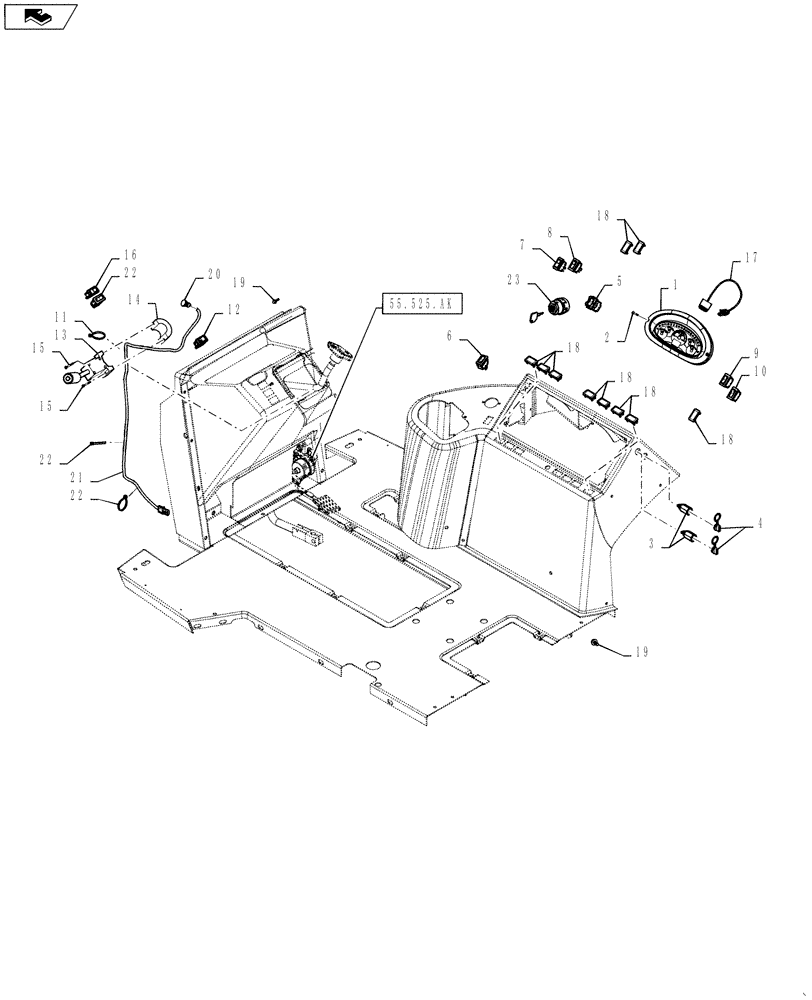

Запчасти Case 570NXT (55.512.BY.) - ELECTRONIC CONTROLS CAB (55) - ELECTRICAL SYSTEMS

1

84386698

INSTRUMENT CLUSTER

Electronic Tier Four, Years: -22-AUG-13

1шт.

1

47522087

INSTRUMENT CLUSTER

, Start Year: 22-AUG-13

1шт.

2

140-119

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

2шт.

3

283779A1

POWER SOCKET,12V

Plug

2шт.

4

283781A1

CAP,Polyester Elastomer

Power Plug

2шт.

5

87614808

ROCKER SWITCH

Parking Brake

1шт.

6

283167A3

ROCKER SWITCH

Diff Lock Engage

1шт.

7

133711A1

LIGHT SWITCH

Driving Lights

1шт.

8

133713A1

LIGHT SWITCH

Front Work Lights

1шт.

9

87410091

ROCKER SWITCH

Momentary Enter

1шт.

10

87410087

ROCKER SWITCH

Momentary Up Down

1шт.

11

131691A1

ROCKER SWITCH

Front And Rear Coupler

1шт.

12

122740A1

ROCKER SWITCH

Horn

1шт.

13

278328A1

SWITCH

Shuttle F-N-R Shift Lever with Switch

1шт.

14

236521A1

HALF-COLLAR

Shuttle Lever

1шт.

15

397990A1

SCREW,Phillips Drive, Pan HD, M5 x 0.8 x 35mm

Trim

2шт.

16

122736A1

FLASHER SWITCH

Hazard Lights

1шт.

17

87527167

HORN,5-15V

Alarm Audible

1шт.

18

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole

1шт.

19

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

20

123097A1

SWITCH

Clutch Cut Out

1шт.

21

123809A2

WIRE HARNESS

Gear Shift

1шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

Tie Black

3шт.

23

282775A1

IGNITION SWITCH

5 Pin

1шт.
