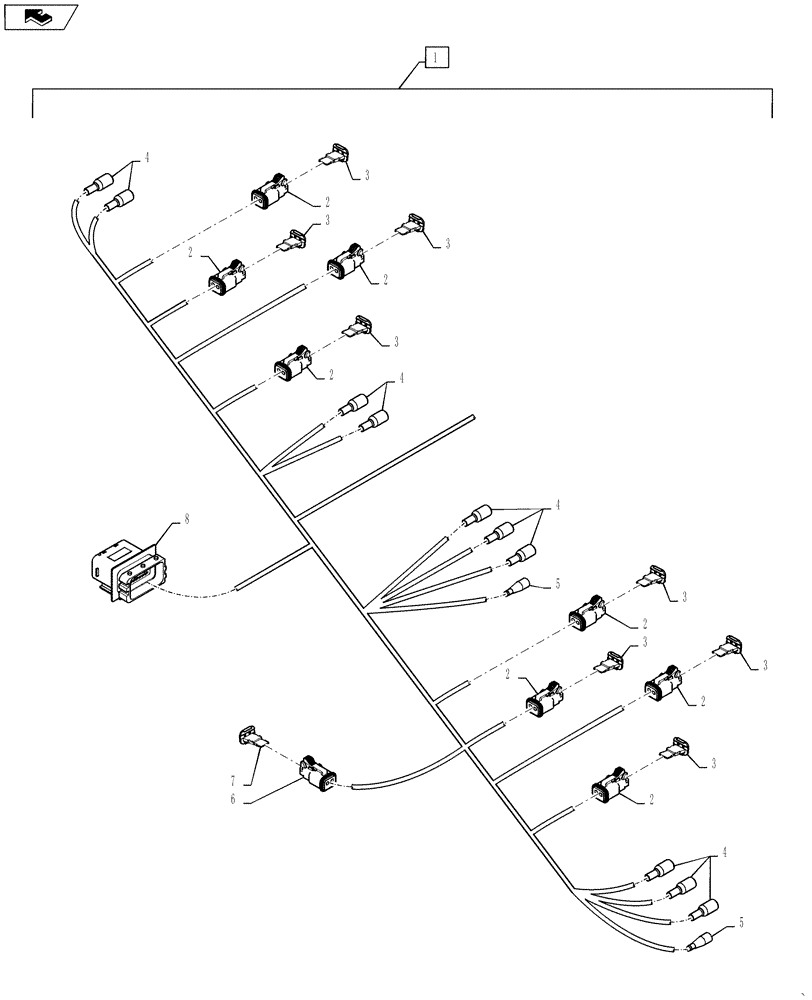

Запчасти Case 570NXT (55.511.AC) - WIRE HARNESS CANOPY LIGHTS (55) - ELECTRICAL SYSTEMS

1

84386679

WIRE HARNESS

Canopy Lights Incl 2 - 8

1шт.

2

84277193

ELEC CONNECTOR

Driving Lights

1шт.

2

84277193

ELEC CONNECTOR

Front Work Lights

1шт.

2

84277193

ELEC CONNECTOR

Front Work Lights

1шт.

2

84277193

ELEC CONNECTOR

Driving Lights

1шт.

2

84277193

ELEC CONNECTOR

Rear Work Lights

1шт.

2

84277193

ELEC CONNECTOR

Rear Work Lights

1шт.

2

84277193

ELEC CONNECTOR

Rear Work Lights

1шт.

2

84277193

ELEC CONNECTOR

Rear Work Lights

1шт.

3

84277223

LOCK

Wedge

8шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

Front LH Turn Signal

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

Front LH Turn Signal

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

Front RH Turn Signal

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

Front RH Turn Signal

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

RH Rear Brake Light

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

RH Rear Tail Lights

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

RH Rear Turn Signal

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

LH Rear Brake Lights

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

LH Rear Tail Lights

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

LH Rear Turn Signal

1шт.

5

84120008

TERMINAL CONNECTOR,Female, 1 Cavity

Ground

1шт.

5

84120008

TERMINAL CONNECTOR,Female, 1 Cavity

Ground

1шт.

6

84277534

ELEC CONNECTOR

Rotating Beacon

1шт.

7

84277220

LOCKING TAB,Wedge Lock

Wedge Lock

1шт.

8

87714265

ELEC CONNECTOR

To Side Harness

1шт.
