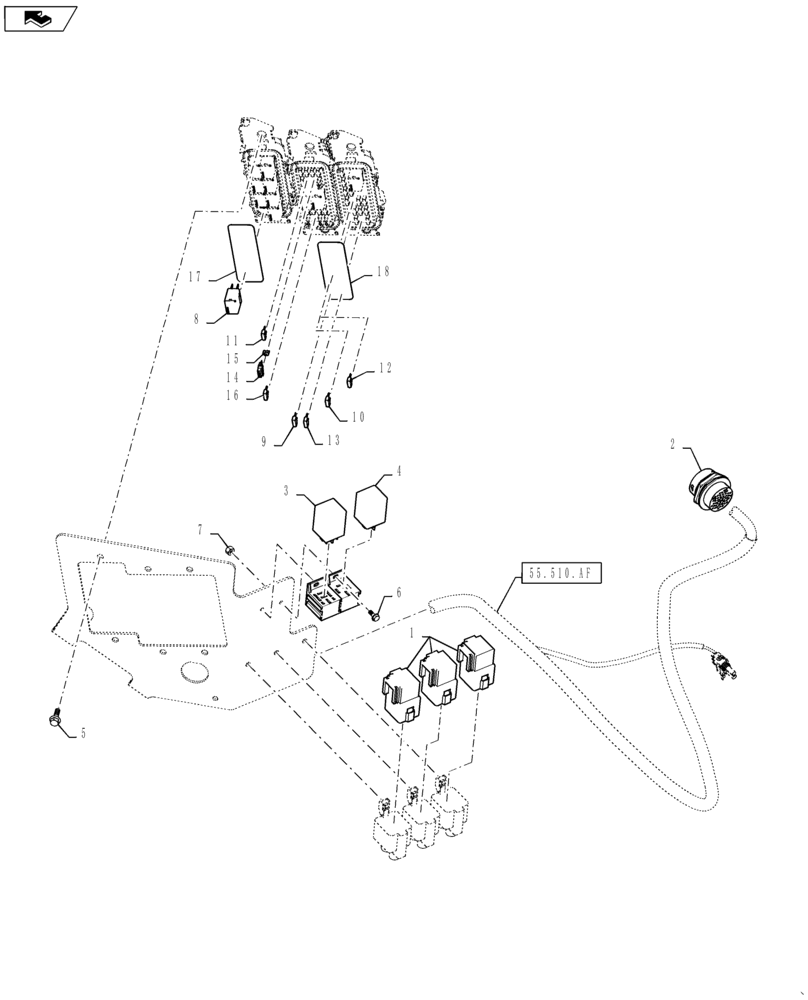

Запчасти Case 570NXT (55.510.AF[NXT]) - CAB FUSE BOX AND RELAYS (55) - ELECTRICAL SYSTEMS

1

84271717

RELAY,12V, 50A

(Used for Power #1 & #2, ECU B+)

3шт.

2

87271930

NUT

Plastic Size 24 End Of Harness

1шт.

3

87578455

RELAY,12V, Turn Signal and Hazard

(Used for Flasher, Hazzard, Turn Signal)

1шт.

4

347706A3

RELAY,12V, 5A

Sealed Time Delay

1шт.

5

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

6

87301687

SCREW,HWH, #10 - 32 x 1/2"

2шт.

7

231-24409

NUT,#10-32

2шт.

8

87655334

RELAY,12V, 35A, Micro

(Used for SAHR Park Break, SAHR Park Brake Trans Cutout, Starter, Power #1, #2, #3, #4, Comfort Steer, Fwd, Neutral, Reverse, Trans De-clutch, Lighting, A/C)

11шт.

9

121416A1

FUSE,30A, Mini, Green

(Used for Cigarette Lighter, Blower Motor, Customer B+, Customer Key On)

5шт.

10

121410A1

FUSE,5A, Mini, Tan

(Used for Tail Light, Dome Light, High Beam, Beacon, Radio B+, Horn, Trax B+, 2WD Ride Control, SAHR Brake, Comfort Steer, Powerlift, ECU B+, Instrument Cluster, Telematics)

11шт.

11

121412A1

FUSE,10A, Mini, Red

(Used for ECU B+, Front/Rear Wiper/Washer, Pilot Ctl, A/C, Key Switch, Quick Coupler, EH Clam, Radio)

6шт.

12

121411A1

FUSE,7.5A, Mini, Brown

(Used Trans Diff Lock, 4WD Auto Ride Ctl, Turn Signal, Hazzard, ECU B+)

4шт.

13

121414A1

FUSE,20A, Mini, Yellow

(Used for Starter, Air Seat, ECU B+)

1шт.

14

416569A1

DIODE ELEMENT,7300W

280 Series (Used for Quick Coupler, Fwd/Reverse Signal, Torque Control)

5шт.

15

84292399

KEY

Key (Used for Fwd/Reverse Signal)

5шт.

16

121413A1

FUSE,15A, Mini, Blue

(Used for Side/Head/Front Work Lights)

2шт.

17

84290787

DECAL

Relay Label

1шт.

18

84290788

DECAL

Fuses Label

1шт.
