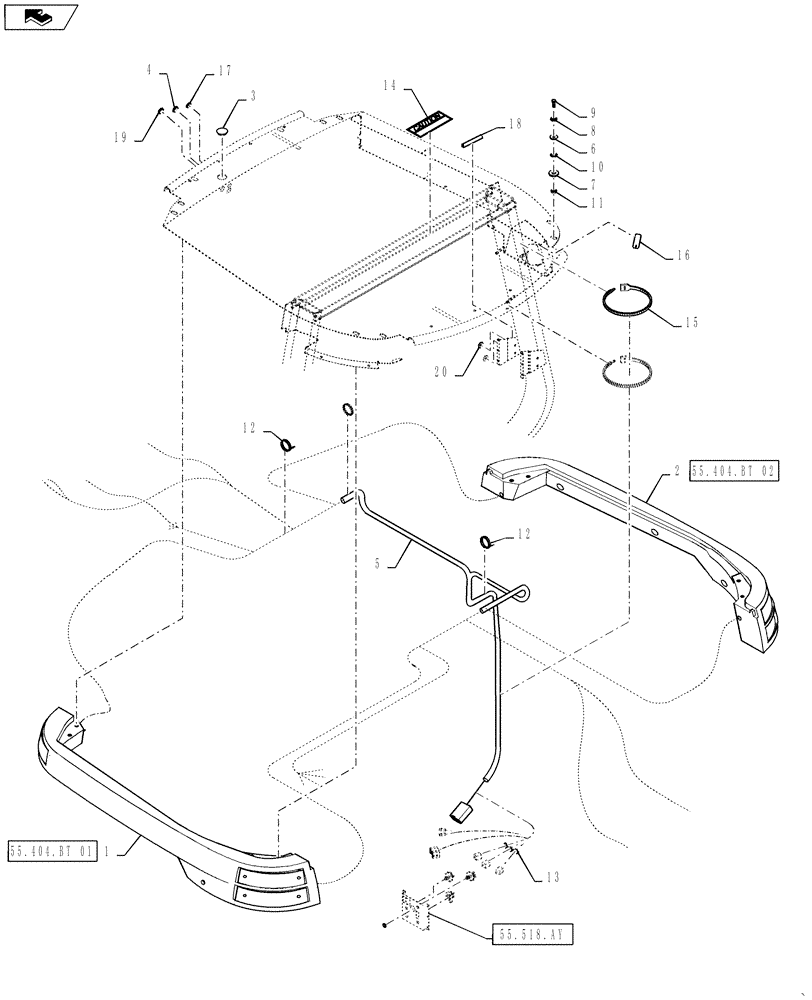

Запчасти Case 570NXT (55.404.BT) - LAMP MOUNTING CAB (55) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

Cab Light LH Order Component Parts

1шт.

2

NSS

NOT SOLD SEPARAT

Cab Light RH Order Component Parts

1шт.

3

86625131

PLUG

Hole 1.5 Inch

1шт.

4

86625133

PLUG

Hole .437 Inch

1шт.

5

131371C1

CONDUIT

Wire Guard

1шт.

6

86625240

WASHER,0.38" ID x 1.12" OD x 0.07" Thk

8шт.

7

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

8

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

8шт.

9

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

8шт.

10

186756A1

SPRING WASHER

Spring

8шт.

11

183598A2

SPACER

Cab Light Pod

8шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

Black

4шт.

13

473321C1

CABLE TIE,8" OAL x 0.098" W

Black Nylon Tie

4шт.

14

112236A1

DECAL

Caution Insulation

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

Black

4шт.

16

193707A1

LARGE PLATE

Retainer

1шт.

17

353-421

PLUG,Dome, .187" hole, Nylon

Nylon

1шт.

18

D36179

LINING

Trim

1шт.

19

86625128

PLUG,Dome, .562" hole, Nylon

1шт.

20

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
