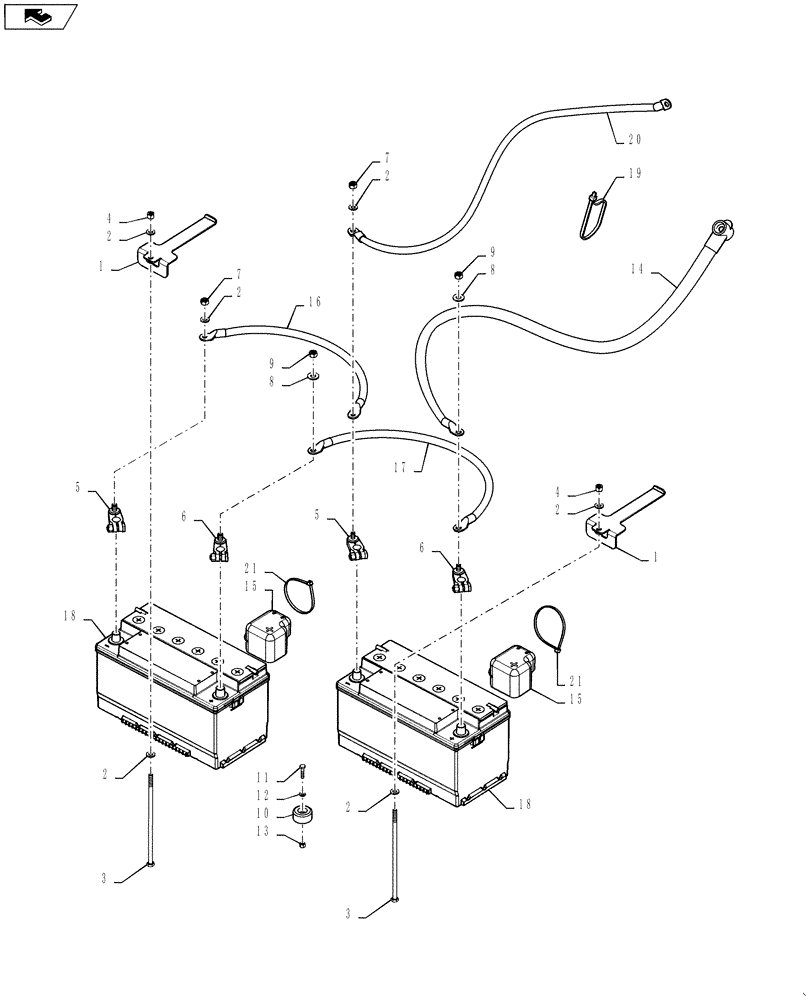

Запчасти Case 570NXT (55.302.AX) - DUAL BATTERY AND BATTERY - CABLES (55) - ELECTRICAL SYSTEMS

1

87653377

BRACKET

Battery Tiedown

2шт.

2

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

8.80 X 17.5 X 2.2

6шт.

3

87522766

BOLT,Hex, M8 x 220mm, Cl 8.8

M8 X 220

2шт.

4

412250

NUT,M8 x 1.25, Cl 8

2шт.

5

87735578

TERMINAL CONNECTOR,5/16 - 18 Stud

Negitive Stud

2шт.

6

87735577

TERMINAL CONNECTOR,3/16 - 18 Stud

Positive Stud

2шт.

7

425-105

NUT,5/16"-18, G5

2шт.

8

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

10.65 X 23

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

10

87671746

BUMPER,Neoprene

Rubber

1шт.

11

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

12

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

6.8 X 12

1шт.

13

832-10406

NUT,M6 x 1, Cl 8

1шт.

14

84470551

CABLE,1350mm L

Main Positive

1шт.

15

87664021

COVER

Battery Terminal

2шт.

16

87610682

NEG BATTERY CABLE,485mm L

Jumper

1шт.

17

87610681

POS BATTERY CABLE

Jumper

1шт.

18

87403835

WET BATTERY,Group 49, 12V, 850CCA

12 Volt

2шт.

19

L18331

CABLE TIE,375.9mm L, Nylon, Black

15 Inch Nylon

1шт.

20

87610680

NEG BATTERY CABLE,1200mm L

Black

1шт.

21

87486703

CABLE TIE,312mm L

Tie Black

2шт.
