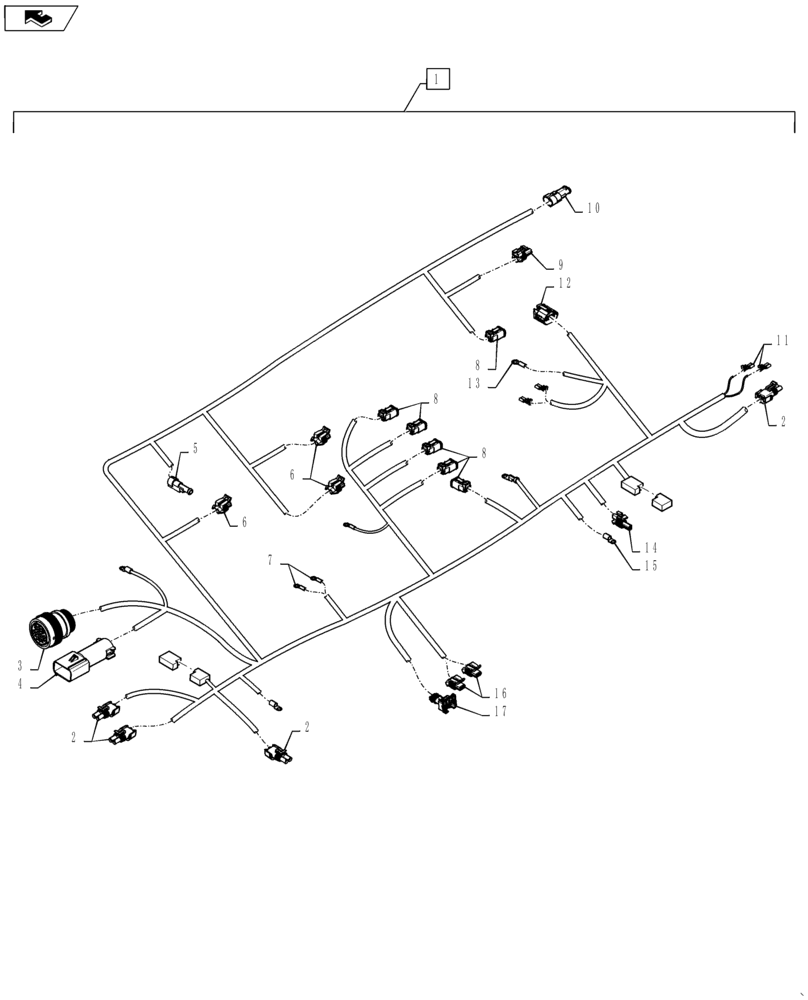

Запчасти Case 570NXT (55.101.AC) - WIRE HARNESS & CONNECTOR FRAME (55) - ELECTRICAL SYSTEMS

1

84526782

WIRE HARNESS

Chassis Incl 2 -, Years: -01-JUN-13

1шт.

2

87692855

CONTACT HOUSING,Male, 2 Cavities

3 Point Hitch Lock Valve

1шт.

2

87692855

CONTACT HOUSING,Male, 2 Cavities

Back Up Alarm

1шт.

2

87692855

CONTACT HOUSING,Male, 2 Cavities

3 Point Hitch Control Valve Switch

1шт.

2

87692855

CONTACT HOUSING,Male, 2 Cavities

A/C High Pressure Switch

1шт.

3

87704526

ELEC CONNECTOR

Connect To Side Console Harness

1шт.

4

NSS

NOT SOLD SEPARAT

Connect To Power Conector In Cab Incl in 1

1шт.

5

87680691

PLUG

Hydrulic Filter Jumper

1шт.

6

87689636

PLUG,Red, Taxi Seal Connector Cavity

Comfort Steer Solonoid

1шт.

6

87689636

PLUG,Red, Taxi Seal Connector Cavity

Quick Coupler Solonoid

1шт.

6

87689636

PLUG,Red, Taxi Seal Connector Cavity

Quick Coupler Load Sense

1шт.

7

225072C1

CONNECTOR, ELEC

Return To Dig

1шт.

7

225072C1

CONNECTOR, ELEC

Return To Dig

1шт.

8

84277220

LOCKING TAB,Wedge Lock

Forward Solonoid

1шт.

8

84277220

LOCKING TAB,Wedge Lock

Reverse Solonoid

1шт.

8

84277220

LOCKING TAB,Wedge Lock

Diff Lock Solonoid

1шт.

8

84277220

LOCKING TAB,Wedge Lock

4WD Solonoid

1шт.

8

84277220

LOCKING TAB,Wedge Lock

Ride Control Pressure Sensor

1шт.

8

84277220

LOCKING TAB,Wedge Lock

Brake Solonoid

1шт.

9

87680691

PLUG

Brake Pressure Switch

1шт.

10

87687244

ELEC CONNECTOR

Fuel Level Sensor

1шт.

11

84177908

TERMINAL

Horn

1шт.

11

84177908

TERMINAL

Horn

1шт.

12

84165069

ELEC CONNECTOR

Alternator

1шт.

13

87710106

TERMINAL CONNECTOR

Alternator B Post

1шт.

14

87686742

PLUG

Starter Solonoid

1шт.

15

84138833

TERMINAL

Starter Power

1шт.

16

87691549

ELEC CONNECTOR

Ride Control Solonoid

1шт.

16

87691549

ELEC CONNECTOR

Ride Control Solonoid

1шт.

17

84607243

ELEC CONNECTOR,Female, 2 Cavities

RTD Solonoid

1шт.
