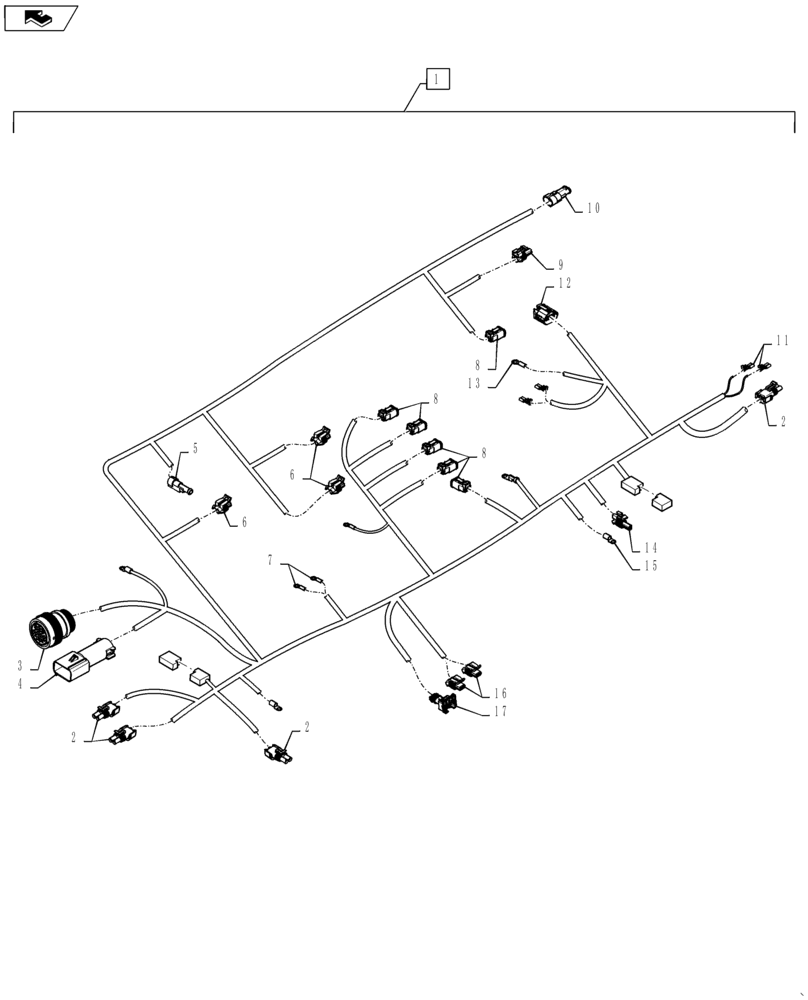

Запчасти Case 570NXT (55.101.AC[01]) - WIRE HARNESS & CONNECTOR FRAME (55) - ELECTRICAL SYSTEMS

1

47489888

WIRE HARNESS

Chassis Incl 2 - 17, Start Year: 01-JUN-13

1шт.

2

87692855

CONTACT HOUSING,Male, 2 Cavities

3 Point Hitch Lock Valve, X-007

1шт.

2

87692855

CONTACT HOUSING,Male, 2 Cavities

Back Up Alarm, X-055

1шт.

2

87692855

CONTACT HOUSING,Male, 2 Cavities

3 Point Hitch Control Valve Switch, X-006

1шт.

2

87692855

CONTACT HOUSING,Male, 2 Cavities

A/C High Pressure Switch, X-086

1шт.

2

87686742

PLUG

3шт.

3

87704526

ELEC CONNECTOR

Connect To Side Console Harness, X-001

1шт.

4

NSS

NOT SOLD SEPARAT

Connect To Power Conector In Cab, X-122, Incl in 1

1шт.

5

87679525

ELEC CONNECTOR,Female, 1 Cavity

Hydrulic Filter Jumper, X-220

1шт.

5

87680691

PLUG

X-220

1шт.

6

87689636

PLUG,Red, Taxi Seal Connector Cavity

Comfort Steer Solonoid, X-058

1шт.

6

87689636

PLUG,Red, Taxi Seal Connector Cavity

Quick Coupler Solonoid, X-060

1шт.

6

87689636

PLUG,Red, Taxi Seal Connector Cavity

Quick Coupler Load Sense, X061

1шт.

6

87693821

ELEC CONNECTOR,Female, 2 Cavities

1шт.

6

87705073

STOP LOCK

1шт.

7

84159852

TERMINAL,#10 Ring, SAE 18 - 20

Return To Dig, X-074

1шт.

7

84159852

TERMINAL,#10 Ring, SAE 18 - 20

Return To Dig, X-075

1шт.

8

84277220

LOCKING TAB,Wedge Lock

Forward Solonoid, X-079

1шт.

8

84277220

LOCKING TAB,Wedge Lock

Reverse Solonoid, X-080

1шт.

8

84277220

LOCKING TAB,Wedge Lock

Diff Lock Solonoid, X-077

1шт.

8

84277220

LOCKING TAB,Wedge Lock

4WD Solonoid, X-078

1шт.

8

84277220

LOCKING TAB,Wedge Lock

Comfort Steer Transmission Switch, X-076

1шт.

8

84277220

LOCKING TAB,Wedge Lock

SAHR Brake Solonoid, X-057

1шт.

8

84277533

ELEC CONNECTOR,Fem, 2 Cavities/Pins

1шт.

9

87687239

CONTACT HOUSING,Female, 1 Pole

Park Brake Pressure Switch, X-099

1шт.

9

87680691

PLUG

1шт.

10

87687244

ELEC CONNECTOR

Fuel Level Sensor, X-063

1шт.

11

84177908

TERMINAL

Horn, X-031

1шт.

11

84177908

TERMINAL

Horn, X-032

1шт.

12

84165069

ELEC CONNECTOR

Alternator, X-083

1шт.

13

87710106

TERMINAL CONNECTOR

Alternator B Post, X-481

1шт.

14

87697528

ELEC CONNECTOR,Female, 1 Pole

Starter Solonoid, X-820

1шт.

14

87704919

LOCKING TAB,Wedge Lock

1шт.

14

87686742

PLUG

1шт.

15

84138833

TERMINAL

Starter Power, X-478

1шт.

15

87486319

TERMINAL

Telematics, M10 ring Terminal, X-535

1шт.

15

87635519

FUSE HOLDER

Telematics, X-538

1шт.

15

87693742

FUSE,5A

Telematics, X-538

1шт.

16

87691549

ELEC CONNECTOR

Ride Control Tank Solonoid, X-052

1шт.

16

87691549

ELEC CONNECTOR

Ride Control Accumulator Solonoid, X-056

1шт.

16

87705073

STOP LOCK

1шт.

17

84607243

ELEC CONNECTOR,Female, 2 Cavities

RTD Solonoid, X-053

1шт.
