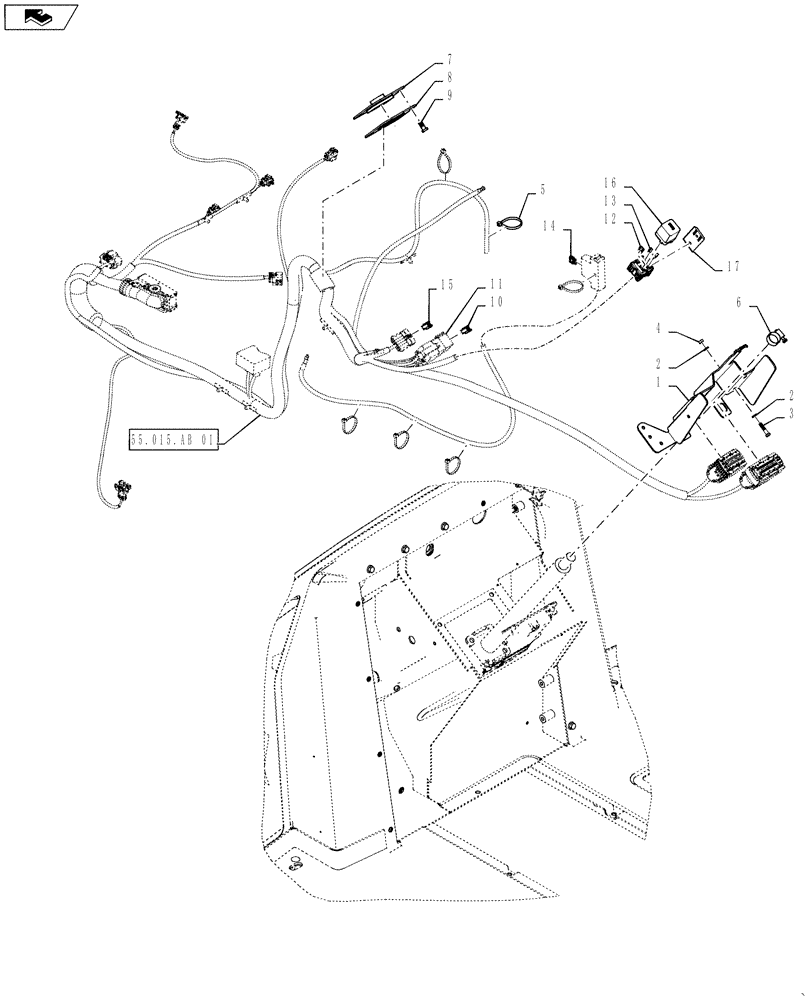

Запчасти Case 570NXT (55.015.AB) - ENGINE WIRE HARNESS MOUNTING (55) - ELECTRICAL SYSTEMS

1

84414504

BRACKET

ECU

1шт.

2

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

8шт.

3

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

4шт.

4

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

Black

7шт.

6

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

1шт.

7

84498262

GROMMET,80mm L, 90mm L, 30mm L

Block Rubber

1шт.

8

84423177

MOUNTING PLATE

Grommet Rubber

1шт.

9

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

Self Tapping

4шт.

10

84386626

WIRE CONNECTOR

Clip Mounting Incl in 11

1шт.

11

84271717

RELAY,12V, 50A

(Used for Power #1 & #2, ECU B+)

1шт.

12

121411A1

FUSE,7.5A, Mini, Brown

(Used Trans Diff Lock, 4WD Auto Ride Ctl, Turn Signal, Hazzard, ECU B+)

2шт.

13

121414A1

FUSE,20A, Mini, Yellow

(Used for Starter, Air Seat, ECU B+)

1шт.

14

84253577

FUSE,60A, Maxi, Blue

(Used for GCU Glow Plug)

1шт.

15

87707841

CLIP,Hole DIA 6.35mm

Mounting

1шт.

16

84386691

COVER

Dillblox Incl in 12

1шт.

17

84386689

CLIP

Dillblox

1шт.

84526819

WIRE HARNESS

Assy, Engine, Incl 10 - 17

1шт.
