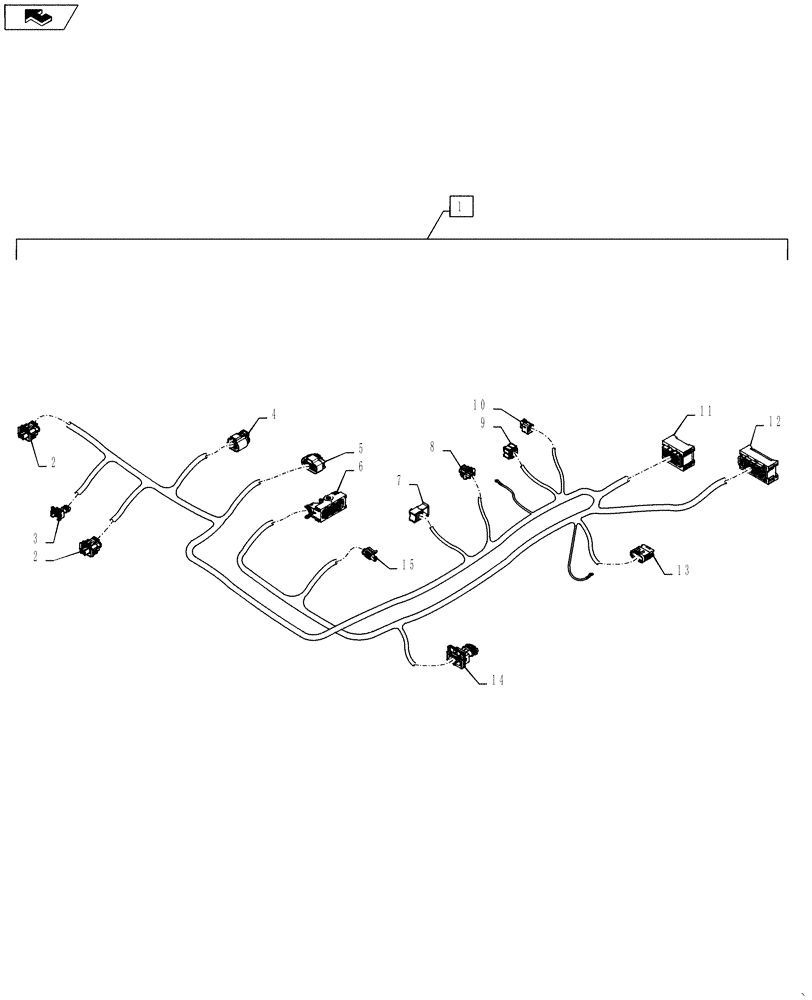

Запчасти Case 570NXT (55.015.AB[01]) - ENGINE WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS

1

84526819

WIRE HARNESS

Engine Incl 2 - 15

1шт.

2

87709793

WIRE CONNECTOR,Female, 2 Cavities

Gas Temp Sensor 1

1шт.

2

87709793

WIRE CONNECTOR,Female, 2 Cavities

Gas Temp Sensor 2

1шт.

3

84607243

ELEC CONNECTOR,Female, 2 Cavities

Air Temp Sensor

1шт.

4

84301132

WIRE CONNECTOR,Female, 6 Cavities

Lambda Sensor

1шт.

5

87698252

ELEC CONNECTOR,Female, 10 Cavities

Electric Valve

1шт.

6

84154659

WIRE CONNECTOR

Engine Interface

1шт.

7

84356962

WIRE CONNECTOR,Female, 8 Cavities

GCU

1шт.

8

87747172

WIRE CONNECTOR,Female

Diff Pressure Sensor

1шт.

9

84520004

RETAINER

Modual

1шт.

10

84471904

HOLDER

Main

1шт.

10

84301901

TERMINAL

20 GA

2шт.

10

84301909

8 GA

TERMINAL

2шт.

11

84474054

WIRE CONNECTOR

ECU

1шт.

12

84474553

WIRE CONNECTOR

ECU

1шт.

13

87698254

ELEC CONNECTOR

To Front Harness

1шт.

14

87709663

ELEC CONNECTOR,Female, 3 Cavities

Water In Fuel Switch

1шт.

15

87687239

CONTACT HOUSING,Female, 1 Pole

A/C Clutch

1шт.
