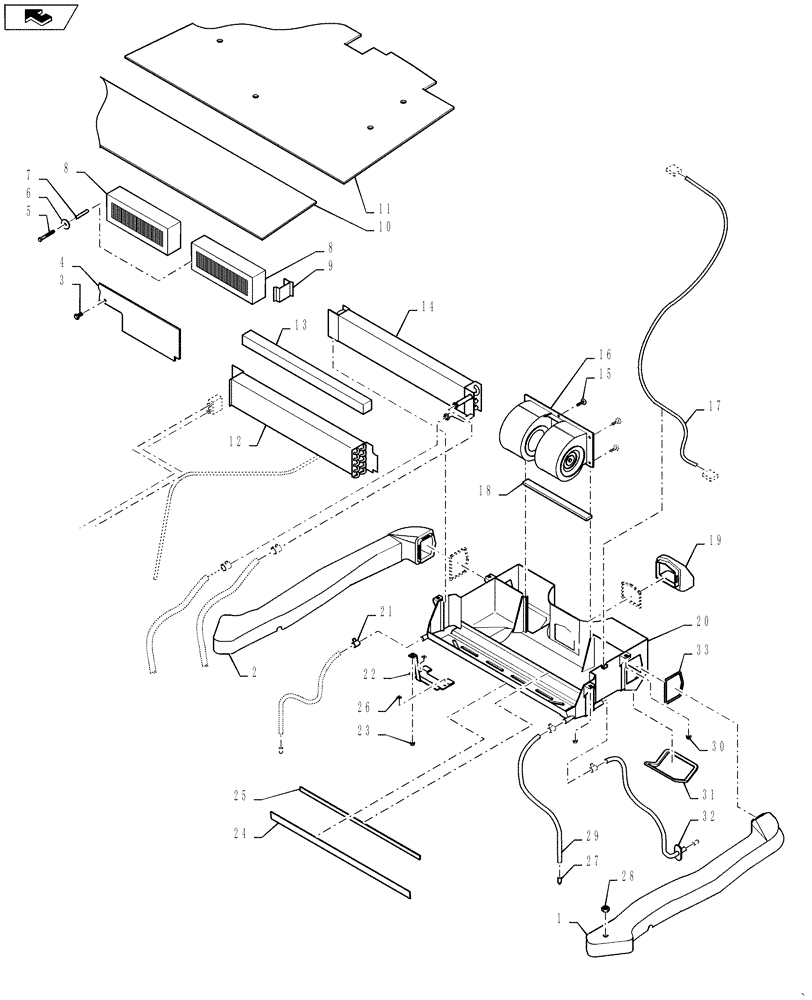

Запчасти Case 570NXT (50.104.AO) - HEATING AND AIR CONDITIONING VENTS (50) - CAB CLIMATE CONTROL

1

131042A1

CONDUIT

Large HVAC RH

1шт.

2

131041A1

CONDUIT

Large HVAC LH

1шт.

3

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

1шт.

4

419698A1

FILTER SCREEN

Rear

1шт.

5

461-33148

HEX SOC SCREW,5/16"-18 x 3"

1шт.

6

495-81121

WASHER,.344" x 1 1/2" x .060"

1шт.

7

140327A1

SPACER

Steel

1шт.

8

139768A1

FILTER, ELEMENT

Air

2шт.

9

123206A2

SUPPORT

RH Filter

1шт.

10

108797A1

PANEL

Rear

1шт.

11

127021A2

PANEL

Front Cab Roof

1шт.

12

131127A2

EVAPORATOR

Core

1шт.

13

181980A1

SEALING STRIP

Foam

1шт.

14

131124A1

CORE

Heater

1шт.

15

182697A1

FASTENER

Christmas Tree

5шт.

16

355189A1

BLOWER,12V - 3 Spd

Heater

1шт.

16

355190A1R

REMAN-BLOWER,12V

Reman for New PN 355189A1

1шт.

16

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

17

189404A1

HARNESS

Jumper Blower

1шт.

18

181981A1

SEALING STRIP

Foam

1шт.

19

131039A1

CONDUIT

Small HVAC

1шт.

20

134125A1

CASE

HVAC

1шт.

21

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

4шт.

22

227178A2

SUPPORT

Case Mounting

1шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

24

1987096C1

PLATE

A/C Pan

1шт.

25

1987097C1

PANEL

A/C Pan

1шт.

26

833-40406

NUT,M6, U

8шт.

27

109239C2

CHECK VALVE

Drain Evap

1шт.

28

833-40406

NUT,M6, U

5шт.

29

127073A1

CONDUIT

A/C Drain

4шт.

30

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

31

131974A1

SEAL

HVAC Box

2шт.

32

L11541

CABLE TIE,203.2mm L, Nylon

7 - 8 Inch Nylon Black

3шт.

33

131974A1

SEAL

HVAC Duct

2шт.
