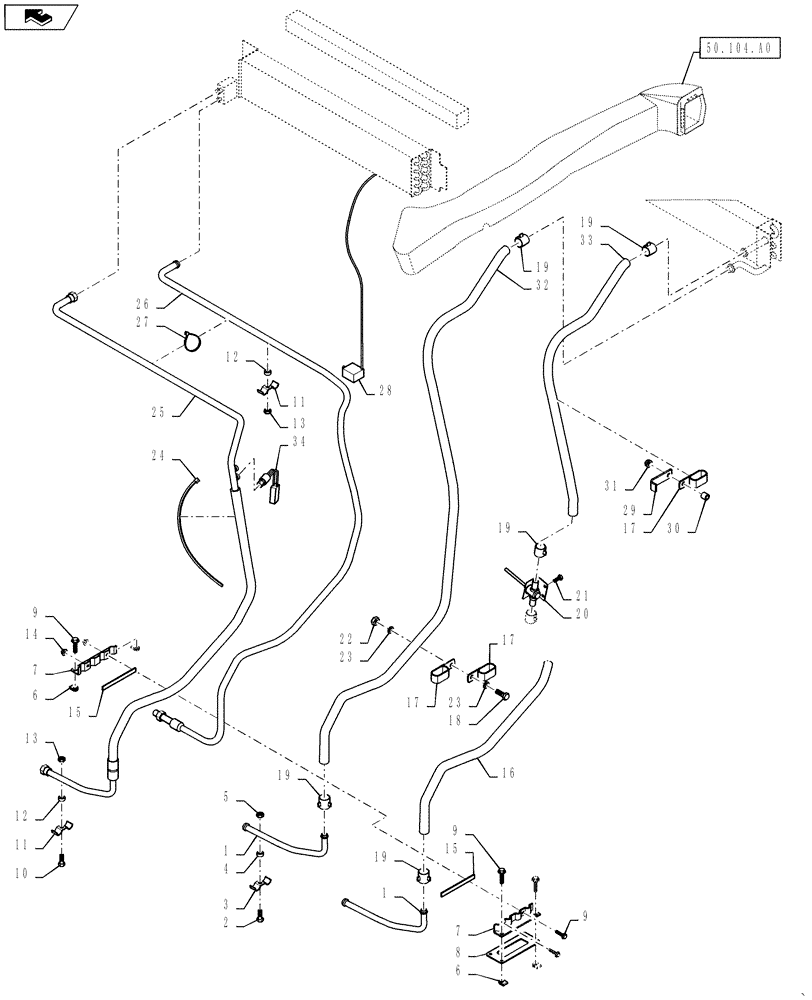

Запчасти Case 570NXT (50.100.AF) - CAB HEATING AND COOLING SYSTEM LINES (50) - CAB CLIMATE CONTROL

1

428362A1

HEATER TUBE

Elbow At Floor

2шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

3

D143427

CLAMP

Tube

1шт.

4

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

Steel

1шт.

5

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

6

833-40406

NUT,M6, U

8шт.

7

123980A1

SHIN

Clamp

2шт.

8

124011A1

GASKET,149mm L x 64mmL x 5mm L

Bulkhead Clamp

1шт.

9

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

8шт.

10

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

11

D143427

CLAMP

Tube

2шт.

12

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

Steel

2шт.

13

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

14

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

15

181979A1

SEALING STRIP

Foam

2шт.

16

128410A1

HEATER HOSE,15.50 mm ID x 925.00 mm, SAE J20, 20R3

Heater Valve To Floor

1шт.

17

470375C1

CLAMP,1", Insul, 3/8" Bolt

Double

4шт.

18

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

19

1954736C1

HOSE CLAMP,#24

6шт.

20

R52483

VALVE

Temperature Control

1шт.

21

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

22

892-11008

LOCK WASHER,8mm ID

1шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

Nylon

2шт.

25

429937A1

HOSE ASSY.

Cab Suction

1шт.

26

430789A1

HOSE ASSY.

Cab Base Liquid

1шт.

27

L11541

CABLE TIE,203.2mm L, Nylon

7 - 8 Inch Black

3шт.

28

1340287C1

SWITCH

A/C Temperature

1шт.

29

R53634

SHIN

Clamp

2шт.

30

126907A1

SPACER,10.31 ID x 15.85 OD x 16.7 L

Steel

2шт.

31

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

32

128411A1

HEATER HOSE,15.50 mm ID x 2030.00 mm, SAE J20, 20R3

Heater Core To Floor

1шт.

33

128412A1

HEATER HOSE,15.50 mm ID x 1100.00 mm, SAE J20, 20R3

Heater Core To Valve

1шт.

34

122579A1

SWITCH, A/C LOW PRES

A/C Low Pressure

1шт.
