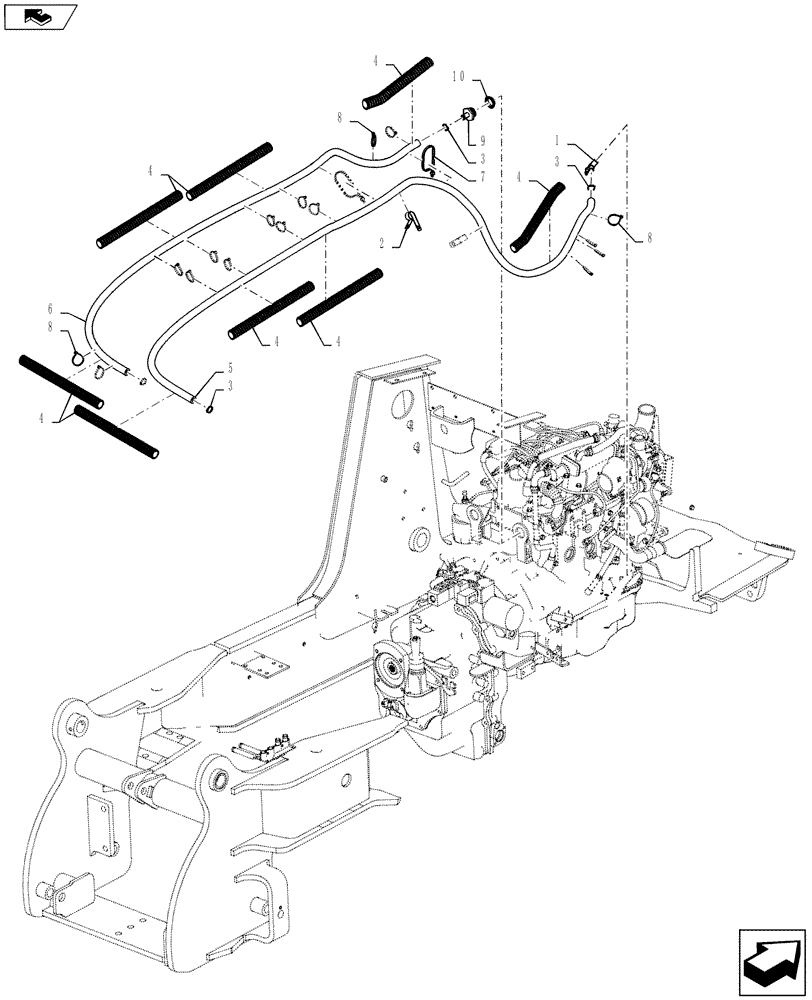

Запчасти Case 570NXT (50.100.AC) - HEATER HOSES (50) - CAB CLIMATE CONTROL

1

87686604

SHUT-OFF VALVE

Heater

1шт.

2

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

Hose

2шт.

3

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

, Years: -01-FEB-16

4шт.

3

328186A1

HOSE CLAMP,400mm L

, Start Year: 01-FEB-16

2шт.

4

D132982

PADDLE,26.87mm ID x 400mm L

Hose Guard

8шт.

5

84467377

HOSE

Heater Return

1шт.

6

225713A1

LARGE HOSE,15.88 mm ID x 2400.00 mm, SAE J20, SAE 20R3

Heater Supply

1шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

15 Inch Nylon

2шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

7 - 8 Inch Black

16шт.

9

84498259

STEM

Bead Hose, Years: -01-FEB-16

1шт.

9

47966470

ADAPTER

Bead Hose, Start Year: 01-FEB-16

1шт.

10

99469380

GASKET,33mm ID x 45mm OD x 2.8mm Thk

Gasket

1шт.
