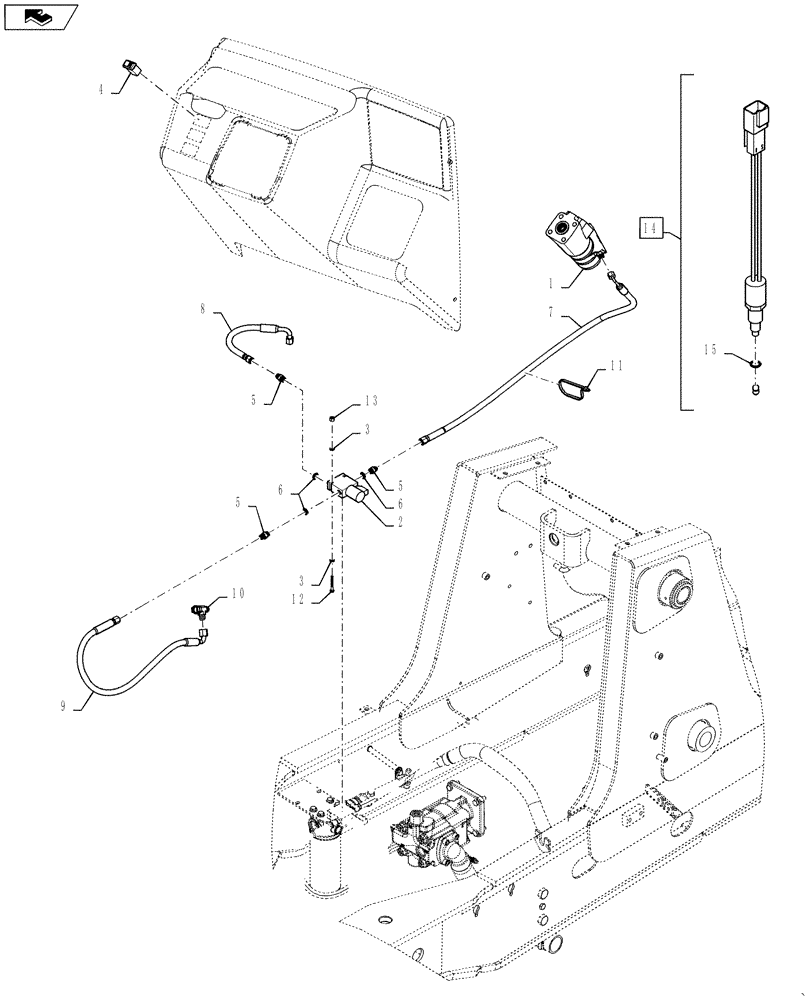

Запчасти Case 570NXT (41.910.AD) - COMFORT STEERING (41) - STEERING

1

84379517

PUMP

Steering Dual Displacement

1шт.

2

87382811

SOLENOID VALVE

2 position 3 way

1шт.

3

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

M6

4шт.

4

87585817

SWITCH

Fast Steering

1шт.

5

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Does Not Incl O-Ring

3шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

7

84356649

HOSE ASSY.

Dual Speed Steer Pilot

1шт.

8

84365945

HOSE ASSY.

Fast Steer Return

1шт.

9

87560507

HYDRAULIC HOSE

Fast Steer Presure

1шт.

10

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

15 Inch Nylon

1шт.

12

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

13

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

2шт.

14

87578910

SENSOR

Transmission Shift Position, Incl O-ring

1шт.

15

87578908

O-RING,0.103" Thk x 0.237" ID, -108, Cl 6, 90 Duro

.103 X .237 108 6

1шт.
