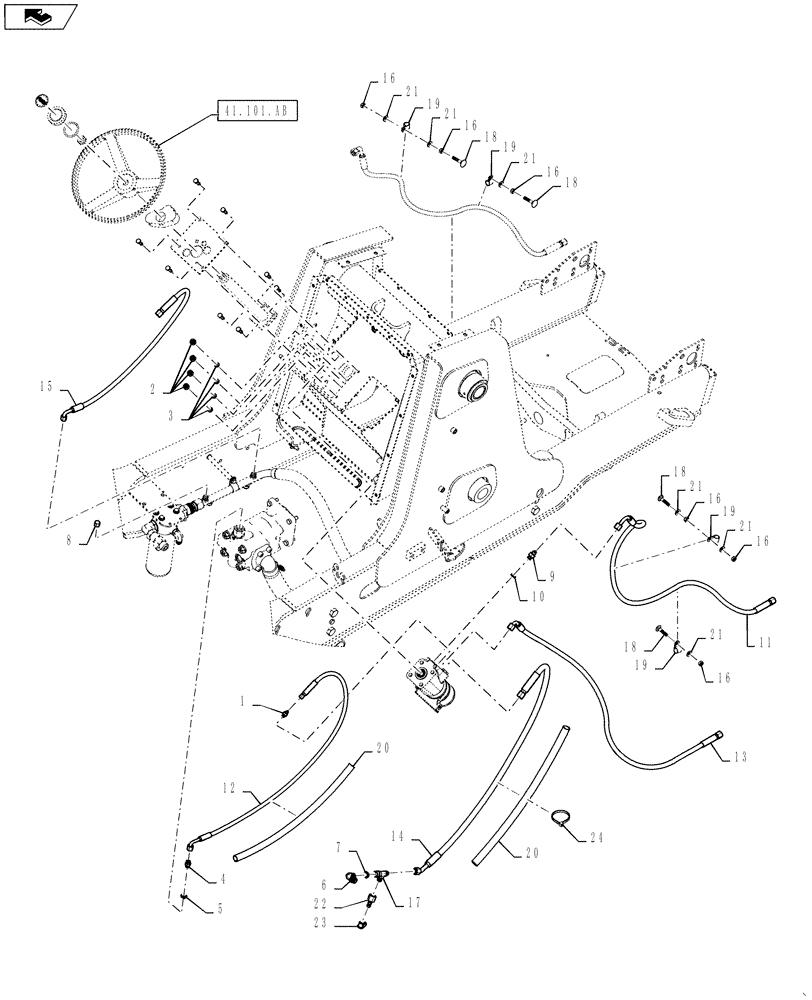

Запчасти Case 570NXT (41.200.AT) - HYDRAULIC STEERING LINES (41) - STEERING

1

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl O-Ring

1шт.

2

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

3

892-11008

LOCK WASHER,8mm ID

4шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

O-Ring Not Incl

1шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

O-Ring Not Incl

1шт.

7

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

574342

CAP,9/16" - 18 JIC

2шт.

9

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

O-Ring Not Incl

4шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

84368621

HYDRAULIC HOSE

LH Steering

1шт.

12

84368809

HYDRAULIC HOSE

Steering Piolt

1шт.

13

84368895

HYDRAULIC HOSE

RH Steering

1шт.

14

84368913

HYDRAULIC HOSE

Steering Pressure

1шт.

15

84493579

HYDRAULIC HOSE,9.53mm ID x 1100mm L, SAE 100R6

Steering Return

1шт.

16

86500689

NUT,M10 x 1.5, Cl 10

7шт.

17

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

Incl O-Ring

1шт.

18

86512426

CARRIAGE BOLT,Sq Nk, M10 x 50mm, Cl 8.8

4шт.

19

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

20

87452021

PROTECTIVE SLEEVE,19mm ID x 650mm L

Hose

2шт.

21

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10

7шт.

22

192834A1

COUPLING

Diagnostic

1шт.

23

H434163

DUST CAP

Coupler

1шт.

24

L11541

CABLE TIE,203.2mm L, Nylon

Black

1шт.
