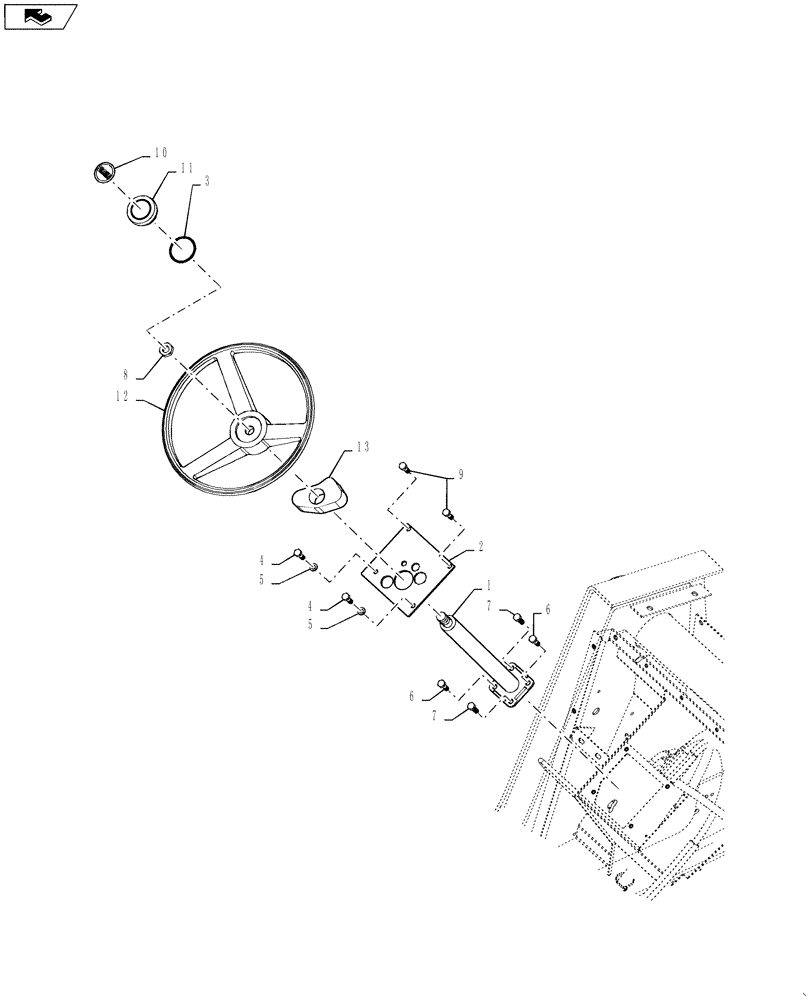

Запчасти Case 570NXT (41.101.AB) - STEERING COLUMN (41) - STEERING

1

142930A2

STEERING COLUMN

With Mounting Holes

1шт.

2

183085A2

LARGE PLATE

Steering Mounting

1шт.

3

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

5

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

M8

2шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

7

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

8

1959509C1

NUT,Hex, M20 x 5, RH

M20

1шт.

9

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

10

84498473

DECAL

Case

1шт.

11

114882A2

CAP,Polystyrene

Steering Wheel

1шт.

12

A65544

STEERING WHEEL

3 Spoke

1шт.

13

337482A1

PAD

Foam

1шт.
