(39.140.AM) - PLUG IN COUNTERWEIGHT 500 LBS

Запчасти Case 570NXT (39.140.AM) - PLUG IN COUNTERWEIGHT 500 LBS (39) - FRAMES AND BALLASTING

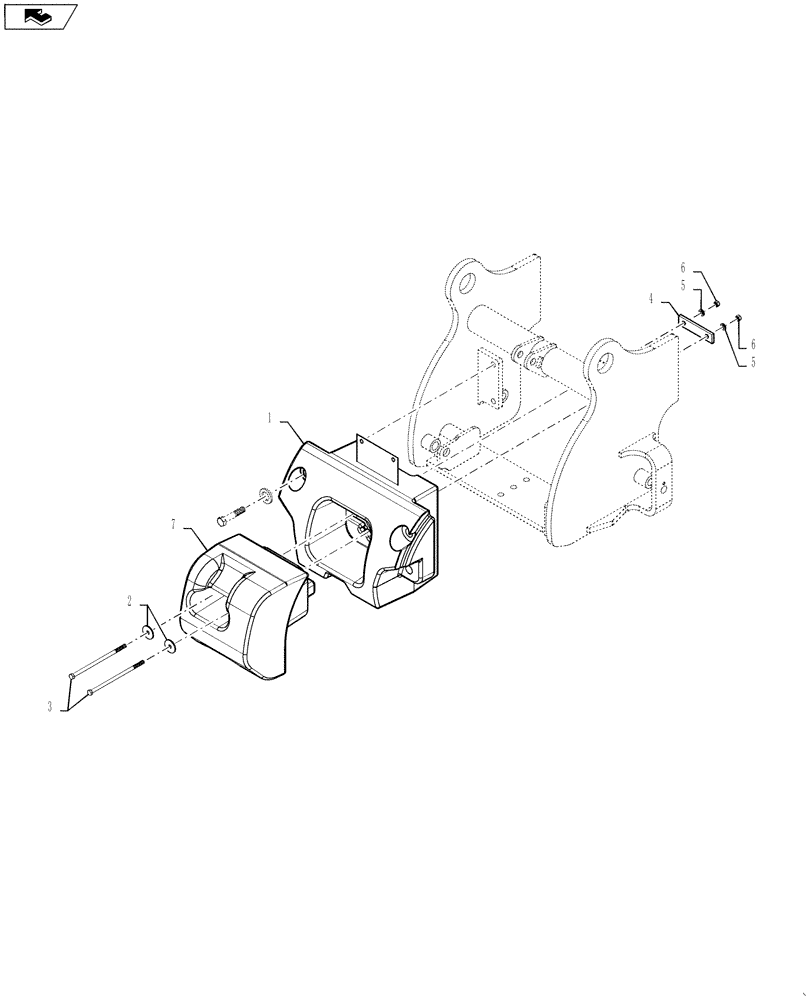

Схема запчастей Case 570NXT - (39.140.AM) - PLUG IN COUNTERWEIGHT 500 LBS (39) - FRAMES AND BALLASTING
1
7
5
home
2
3
6
6
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87517020

COUNTERWEIGHT,Filler, 500 Lb

1шт.

2

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

.521 X 2.00

2шт.

3

84019085

BOLT,Hex, M12 x 260mm, Cl 8.8

2шт.

4

87571073

MOUNTING PLATE

Counter Weight

1шт.

5

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

6

829-1412

NUT,M12, Cl 10.9

2шт.

7

87579174

COUNTERWEIGHT,Filler, 500 Lb

Filler

1шт.
