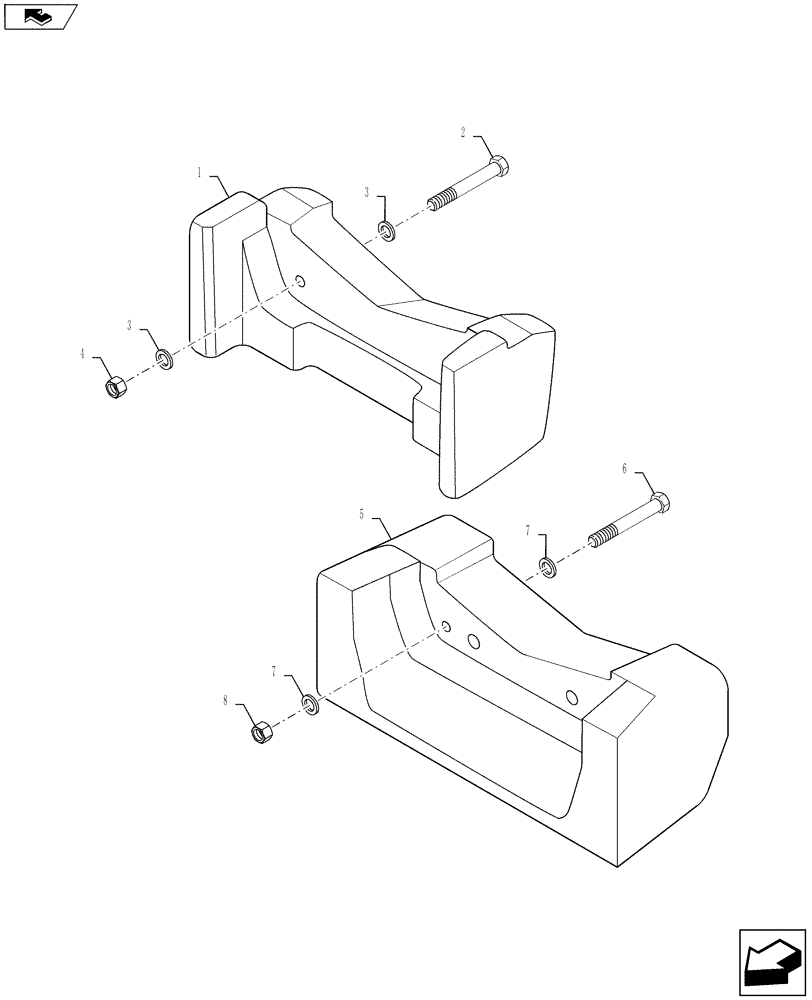

Запчасти Case 570NXT (39.140.AM[02]) - COUNTERWEIGHTS FRONT (39) - FRAMES AND BALLASTING

1

360867A1

COUNTERWEIGHT,Front, 440 Lb

200 kg (441 lbs)

1шт.

2

827-20170

BOLT,Hex, M20 x 2.5 x 170mm, Cl 10.9

2шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

4

829-1420

NUT,M20, Cl 10

2шт.

5

87425456

COUNTERWEIGHT,Front, 900 Lb

408 kg (900 lbs)

1шт.

6

827-20170

BOLT,Hex, M20 x 2.5 x 170mm, Cl 10.9

2шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

8

829-1420

NUT,M20, Cl 10

2шт.
