(39.140.AM[01]) - 3000 LB REAR COUNTERWEIGHT INSTALLATION

Запчасти Case 570NXT (39.140.AM[01]) - 3000 LB REAR COUNTERWEIGHT INSTALLATION (39) - FRAMES AND BALLASTING

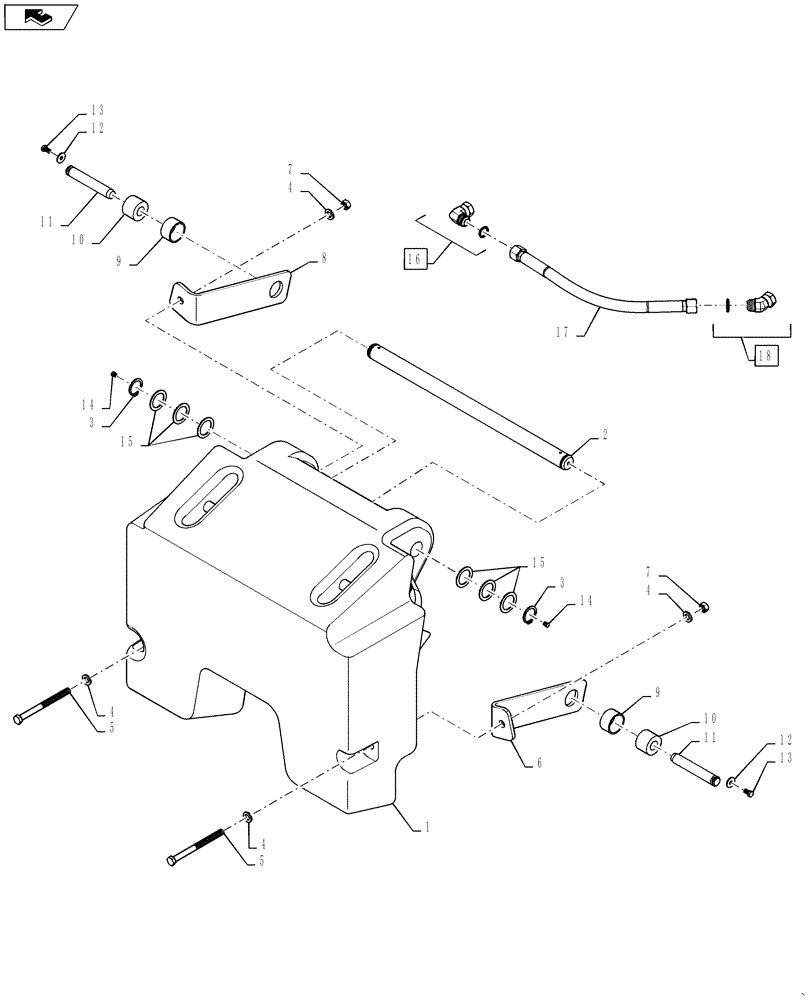

Схема запчастей Case 570NXT - (39.140.AM[01]) - 3000 LB REAR COUNTERWEIGHT INSTALLATION (39) - FRAMES AND BALLASTING
9
15
4
12
13
1
5
11
18
7
4
9
10
14
15
13
3
11
3
10
4
5
16
14
home
7
6
17
2
12
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87341415

COUNTERWEIGHT,Rear, 3000 Lb

Rear

1шт.

2

87518226

PIN

Draft Arm

1шт.

3

103-16175

SNAP RING,#175, Ext

Circlip

2шт.

4

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

17.75 X 31 2mm

4шт.

5

382358

BOLT,Hex, M16 x 2 x 200mm, Cl 8.8

2шт.

6

87521725

MOUNTING PLATE

3000 LB

1шт.

7

392530

NUT,M16, Cl 10

2шт.

8

87521726

MOUNTING PLATE

3000 LB

1шт.

9

87592901

SPACER

3000 LB Counterweight

2шт.

10

87592902

SPACER

3000 LB counterweight

2шт.

11

87389840

GROOVED PIN

Draft Arm

2шт.

12

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

10.65 X 31

2шт.

13

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

14

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

2шт.

15

87613252

WASHER,1.81" ID x 2.5" OD x 0.11" Thk

1.812 X 2.5

6шт.

16

86050288

ELBOW,90 Degree, 1-5/16" - 12 JIC x 1-5/16" - 12, 37 Degrees Fem Sw

Incl O-Ring

1шт.

17

84428101

HOSE ASSY.

Loader To Filter

1шт.

18

86512961

45 ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

Incl O-Ring

1шт.
