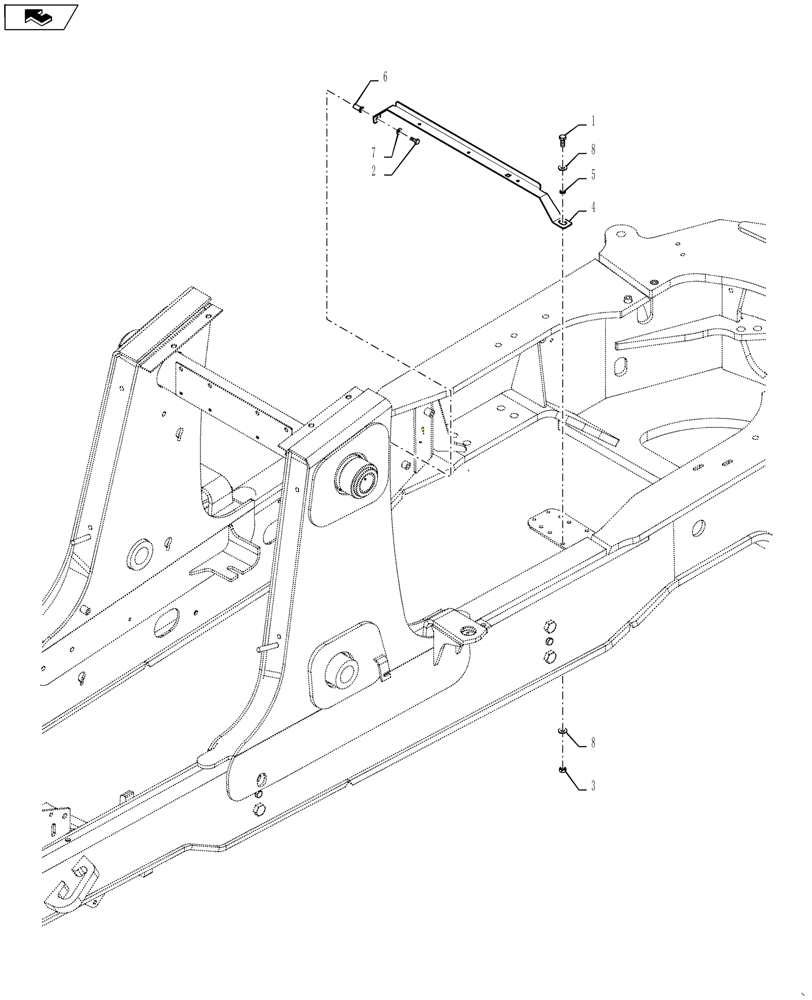

Запчасти Case 570NXT (39.100.AC) - FRAME CROSSMEMBER (39) - FRAMES AND BALLASTING

1

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

2

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

4

84254110

BRACKET, SUPPORTING

C Channel

1шт.

5

84342280

SPACER,10.5mm ID x 15.5mm OD x 3mm Thk

1шт.

6

87417383

THREADED INSERT,M8 x 1.25

1шт.

7

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

8

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.
