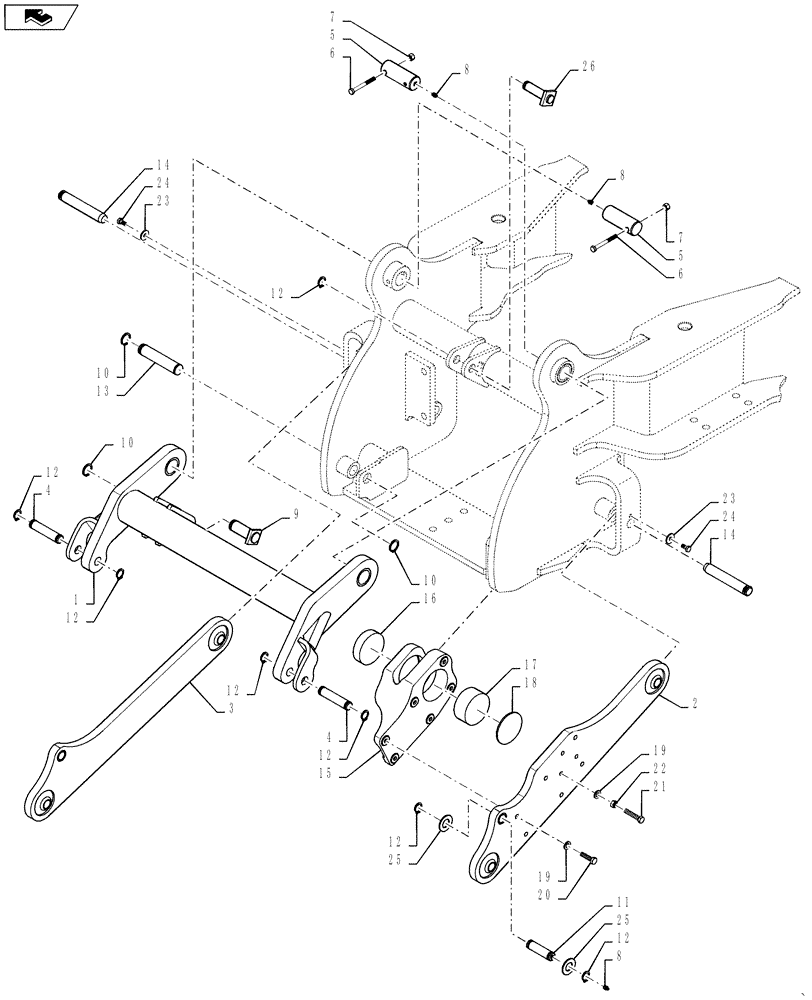

Запчасти Case 570NXT (37.120.AX) - THREE POINT HITCH FRAME (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87565751

PIVOT PLATE

Rocker Shaft

1шт.

2

87565752

ARM/LIFTING DEVICE

Plate RH Lower

1шт.

3

87565753

ARM/LIFTING DEVICE

Plate LH

1шт.

4

87392172

GROOVED PIN,25.32mm OD x 117.1mm L

Lift Arm

2шт.

5

87389562

PIN

Rocker Arm

2шт.

6

120074

BOLT,Hex, M10 x 90, 8.8

2шт.

7

412141

NUT,M10 x 1.5, Cl 8

2шт.

8

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

3шт.

9

199243A1

PIN,31.8mm OD x 96.5mm L

Hardened

1шт.

10

103-16125

SNAP RING,#125, Ext

3шт.

11

87317419

GROOVED PIN,25.34mm OD x 95mm L

Cylinder

1шт.

12

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

1 Inch

7шт.

13

87389561

GROOVED PIN,31.7mm OD x 154.4mm L

Lift Cylinder

1шт.

14

87389840

GROOVED PIN

Draft Arm

2шт.

15

87519826

CASTING

Caliper

1шт.

16

87515429

WEAR PAD

Side

1шт.

17

87515456

WEAR PAD

Side

1шт.

18

87534158

THRUST WASHER,100mm OD x 4.37mm Thk

Washer Thrust

1шт.

19

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

13.65 X 24

9шт.

20

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

6шт.

21

1637759

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9, Full Thd

3шт.

22

337475

NUT,M12, Cl 10

3шт.

23

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

10.65 X 31

2шт.

24

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

25

495-11106

WASHER,1", SAE

2шт.

26

199189A1

PIN,25.4mm OD x 104.1mm L

Hardened

1шт.
