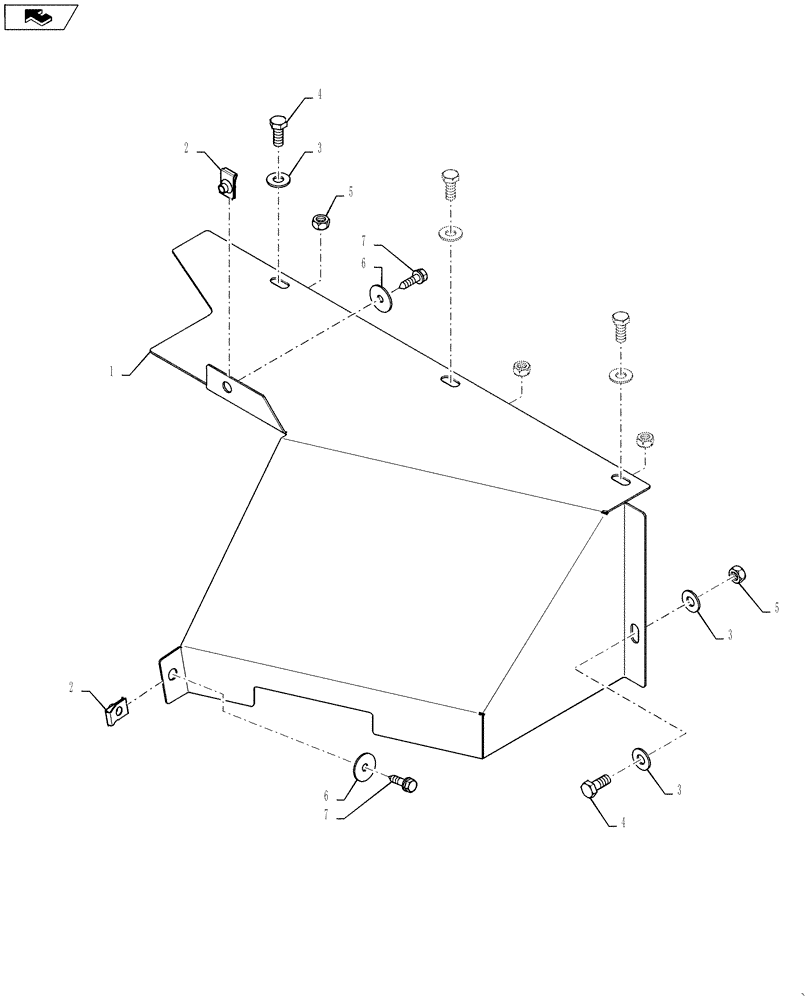

Запчасти Case 570NXT (37.110.AP[01]) - 3 POINT HITCH VALVE COVER CANOPY ONLY (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

402455A1

COVER

Rear Valve

1шт.

2

833-40406

NUT,M6, U

Spring

2шт.

3

86981722

WASHER,9mm ID x 20mm OD x 1.6mm Thk

5шт.

4

87646159

BOLT,Hex, M8 x 20mm, Cl 8.8

4шт.

5

829-1708

NUT,M8, Cl 10

4шт.

6

86981721

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

7

417310A1

BOLT,M6 x 25 Self Align W/Captured WSHR

M6 X 25

2шт.
