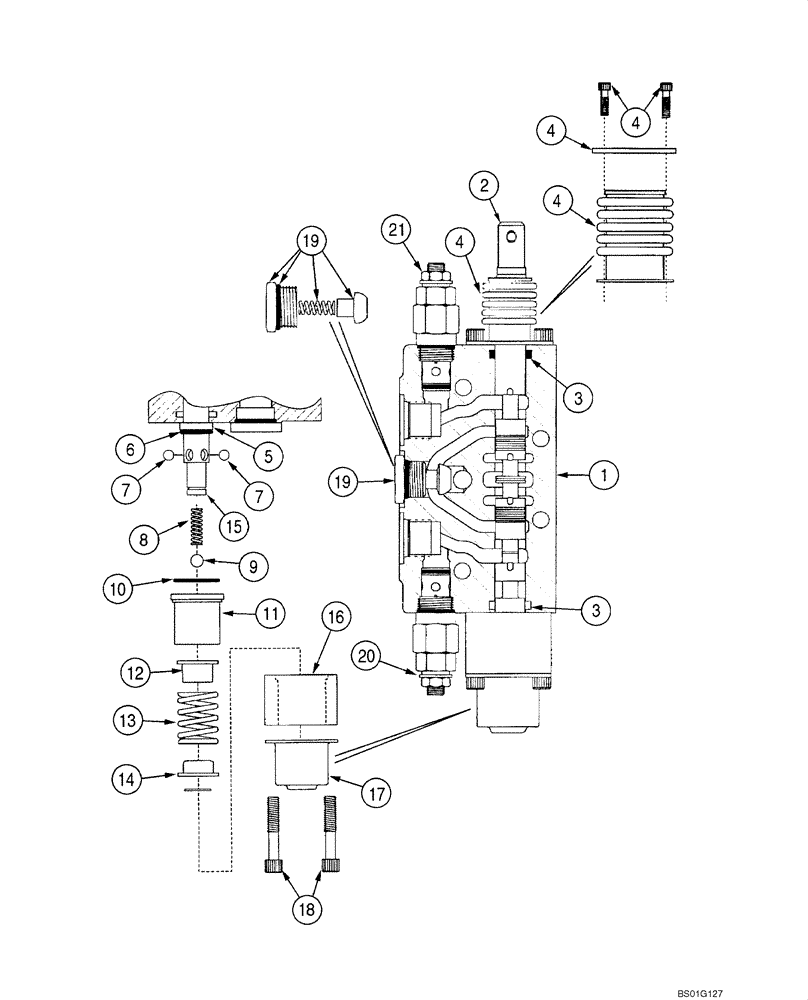

Запчасти Case 570NXT (37.110.AC[06]) - 3 POINT HITCH, CONTROL VALVE SECTION (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

.

418955A1

HYD VALVE SECTION

Hitch Lift Section, With Switch On Lift Spool For Lock Valve, Incl 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

419308A1

SEAL

Kit, Spool Lip Seal, Includes (2) O-Rings, Component Parts Not Serviced Separately

1шт.

4

419309A1

BOOT

Boot Kit, Includes Boot, Retainer and (4) Screws, Component Parts Not Serviced Separately

1шт.

5

432850A1

KIT

Incl 5 - 18

1шт.

5

419337A1

SLEEVE

Incl in 5

1шт.

6

419338A1

SEAL

Incl in 5

1шт.

7

86642303

BALL,6.42mm OD, Gr 24

Incl in 5

4шт.

8

419339A1

COIL SPRING

Incl in 5

1шт.

9

86642304

BALL,7.94mm OD, Gr 24

Incl in 5

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 5

1шт.

11

NSS

NOT SOLD SEPARAT

Sleeve, Incl in 5

1шт.

12

NSS

NOT SOLD SEPARAT

Seat, Incl in 5

1шт.

13

NSS

NOT SOLD SEPARAT

Spring, Incl in 5

1шт.

14

NSS

NOT SOLD SEPARAT

Seat, Incl in 5

1шт.

15

432851A1

SPOOL

Incl in 5

1шт.

16

NSS

NOT SOLD SEPARAT

Spacer, Incl in 5

1шт.

17

419341A1

COVER

Incl in 5

1шт.

18

NSS

NOT SOLD SEPARAT

Screw, Incl in 5

4шт.

19

419306A1

KIT

Load Check, Includes Plug, O-Ring, Spring and Poppet, Component Parts Not Serviced Separately

1шт.

20

433552A1

VALVE, PRESSURE RELI

EF 2550 psi, Incl 20, Component Parts Not Serviced Separately, For Service Of External Seals, Order 419313A1

1шт.

20

419313A1

KIT

Includes (2) O-Rings and (1) Backup Ring, Component Parts Not Serviced Separately

1шт.

21

433553A1

VALVE, PRESSURE RELI

EF 500 psi, Incl 20, Component Parts Not Serviced Separately, For Service Of External Seals, Order 419313A1

1шт.

419347A1

KIT

Switch Block, Includes Switch, Lock Nut, Block, Retainer, Boot and (4) Screws, Component Parts Not Serviced Separately

1шт.
