(37.110.AC[05]) - 3 POINT HITCH, CONTROL VALVE SECTION

Запчасти Case 570NXT (37.110.AC[05]) - 3 POINT HITCH, CONTROL VALVE SECTION (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

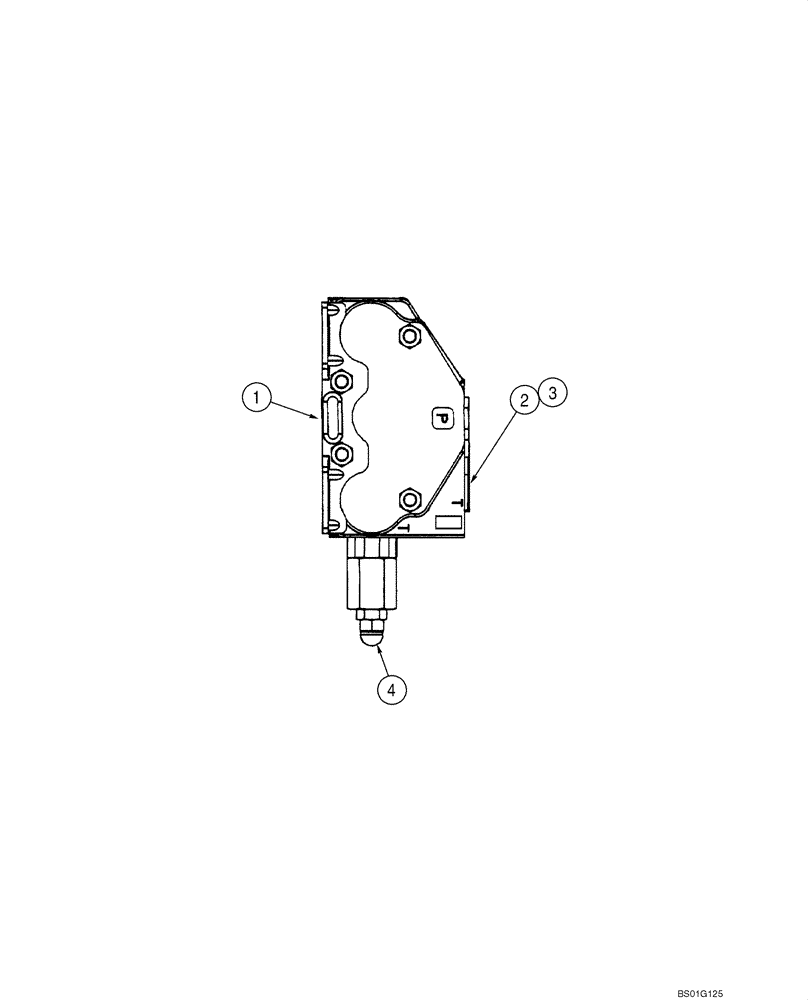

Схема запчастей Case 570NXT - (37.110.AC[05]) - 3 POINT HITCH, CONTROL VALVE SECTION (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
4
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

432849A1

COVER ASSY

Inlet Section, Incl. Ref 1 - 4

1шт.

1

419087A1

COVER

1шт.

2

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 3

1шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

428250A1

VALVE, PRESSURE RELI

EF Relief Valve, Includes 419190A1, Component Parts Not Serviced Separately, For Service Of External Seals, Order 419190A1

1шт.

419190A1

KIT

Seal, Includes (2) O-Rings and (1) Backup Ring

1шт.
