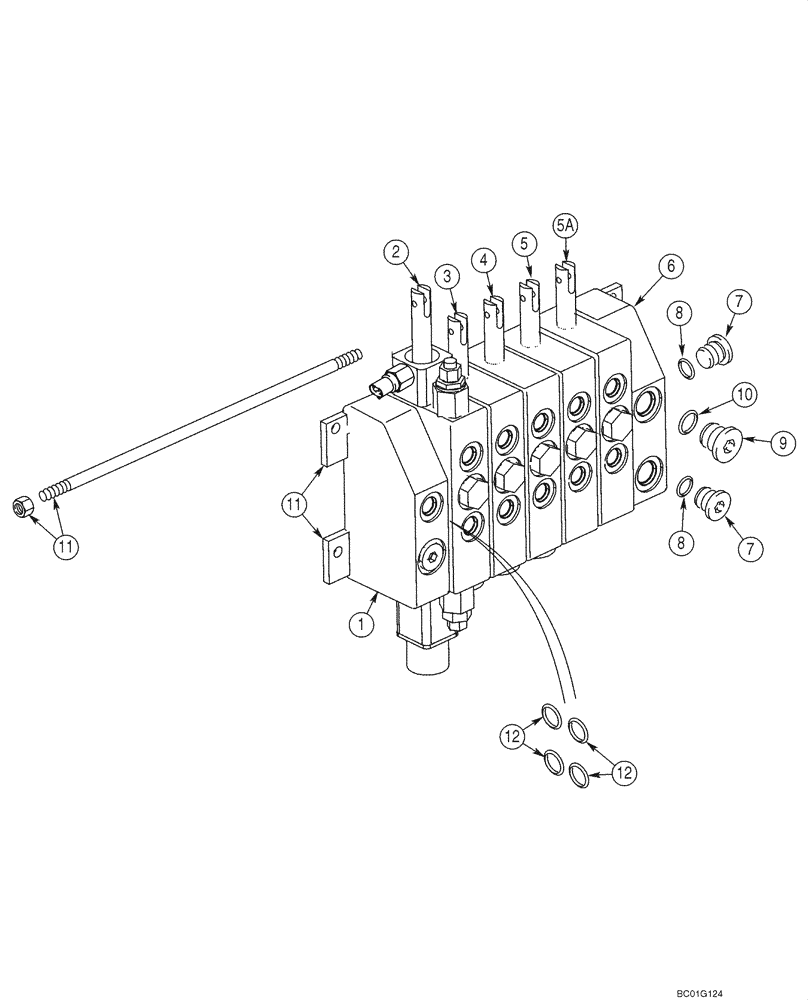

Запчасти Case 570NXT (37.110.AC[04]) - 3 POINT HITCH, CONTROL VALVE ASSY (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

.

84260988

VALVE, CONTROL

Assembly, 3 Point, 5 Spool, Incl 1 - 12

1шт.

1

432849A1

COVER ASSY

Inlet Section

1шт.

2

418955A1

HYD VALVE SECTION

Lift Section, With Switch On Lift Spool For Lock Valve

1шт.

2

419347A1

KIT

Switch Block, Includes Switch, Lock Nut, Block, Retainer, Boot and (4) Screws, Component Parts Not Serviced Separately

1шт.

3

418956A1

HYD VALVE SECTION

Pitch Section

1шт.

4

418956A1

HYD VALVE SECTION

Tilt Section

1шт.

5

418956A1

HYD VALVE SECTION

Implement Section

1шт.

5a

418956A1

HYD VALVE SECTION

Auxiliary Section

1шт.

6

418957A1

COVER ASSY

Outlet Section, Incl 6 - 10

1шт.

6

419343A1

HOUSING

Incl in 6

1шт.

7

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Incl in 6, Incl 8

2шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl in 6, Incl in 7

1шт.

9

86625138

PLUG,7/18" - 14

Incl in 6, Incl 10

1шт.

10

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl in 6, Incl in 9

1шт.

11

419076A1

KIT

Stud

1шт.

12

418958A1

KIT

Section Seals, Component Parts Not Serviced Separately, Includes (4) O-Rings

6шт.
