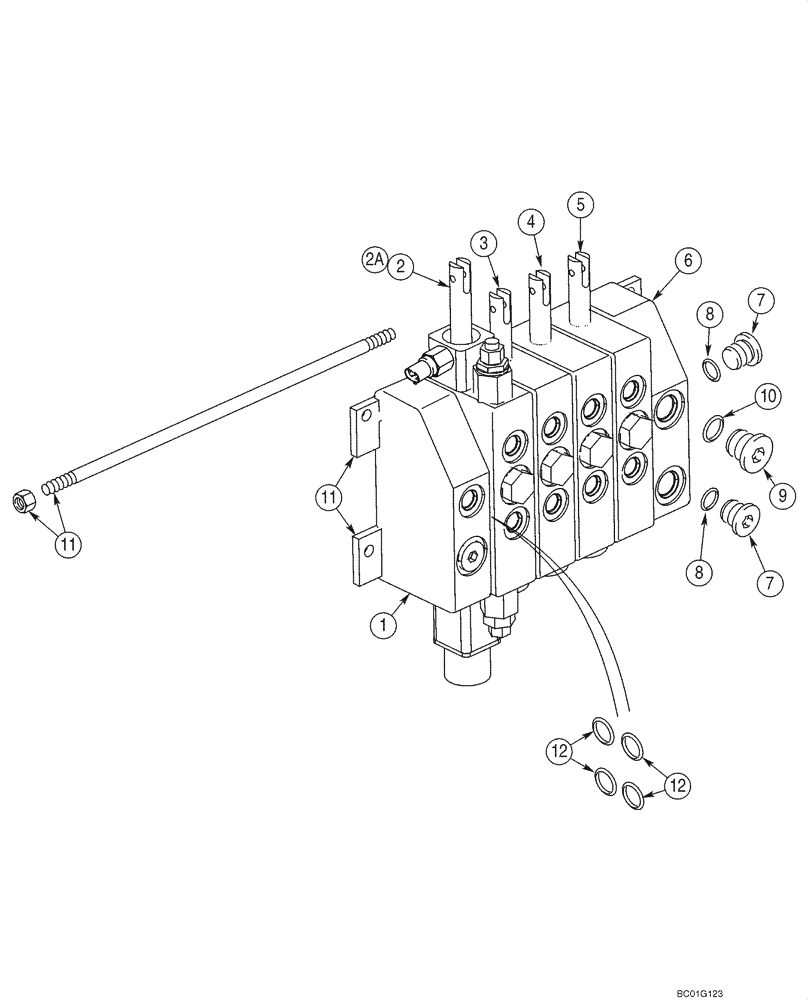

Запчасти Case 570NXT (37.110.AC[03]) - 3 POINT HITCH, CONTROL VALVE ASSY (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

.

84260987

VALVE, CONTROL

Hitch, 3 Point, 4 Spool Lock Valve Assembly - With Switch On Lift Spool For Lock Valve, Incl 1- 12

1шт.

1

432849A1

COVER ASSY

Inlet Section

1шт.

2

418955A1

HYD VALVE SECTION

Lift Section

1шт.

2a

419347A1

KIT

Switch Block, Includes Switch, Lock Nut, Block, Retainer, Boot and (4) Screws, Component Parts Not Serviced Separately

1шт.

3

418956A1

HYD VALVE SECTION

Pitch Section

1шт.

4

418956A1

HYD VALVE SECTION

Tilt Section

1шт.

5

418956A1

HYD VALVE SECTION

Implement Section

1шт.

6

418957A1

COVER ASSY

Outlet, Incl 6 - 10

1шт.

6

419343A1

HOUSING

Incl in 6

1шт.

7

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Incl in 6, Incl 8

2шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl in 6, Incl in 7

1шт.

9

86625138

PLUG,7/18" - 14

Incl in 6, Incl 10

1шт.

10

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl in 6, Incl in 9

1шт.

11

432852A1

KIT

Stud

4-8шт.

11

432848A1

KIT

Component Parts Not Serviced Separately, Includes (4) Tie Bolts, (8) Nuts, (2) Brackets and (6) Seals

2шт.

12

418958A1

KIT

Section Seals, Component Parts Not Serviced Separately, Includes (4) O-Rings

5шт.

.

To Convert Four Spool Valve to Five Spool Valve, Order 430409A1 Valve Section Kit

1шт.

.

430409A1

HYDRAULIC VALVE

Includes 418956A1 5th Work Section, (4) Tie Rods for Five Spool, (4) O-Rings

1шт.
