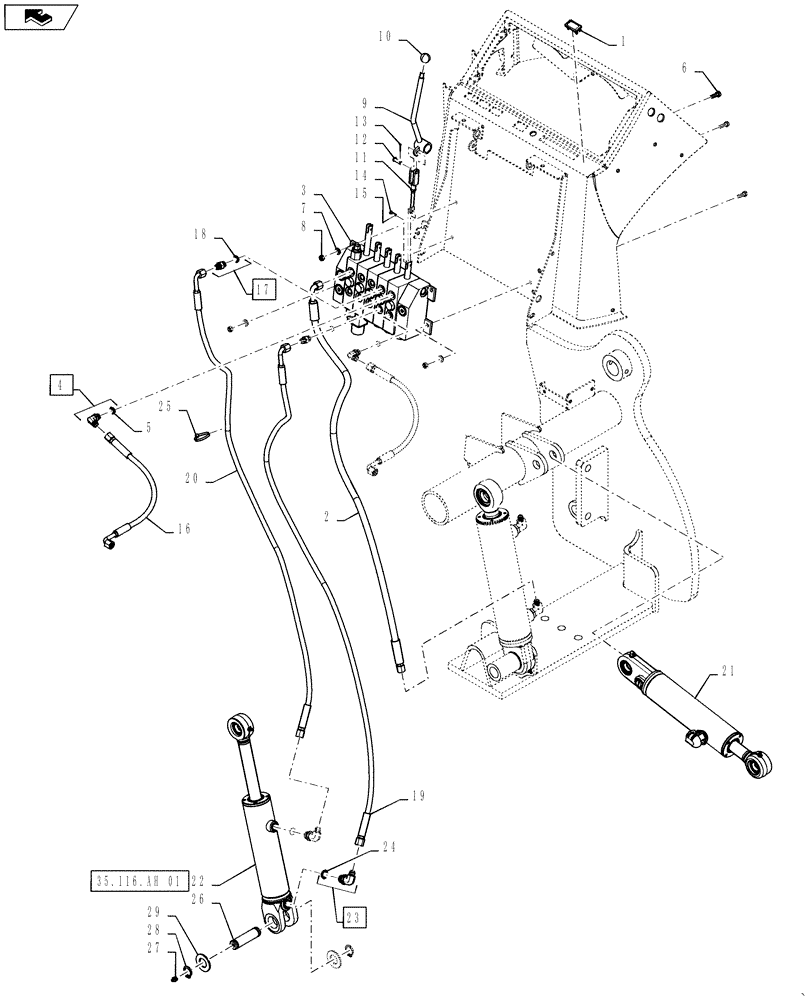

Запчасти Case 570NXT (37.110.AC[02]) - 3 POINT HITCH DUAL TILT WITHOUT HOLDING VALVE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole Cover

1шт.

2

87573253

HOSE ASSY.,10mm ID x 1306mm L, SAE 100R17

Lift Head End

1шт.

3

84260988

VALVE, CONTROL

3 point Hitch 5 Spool

1шт.

4

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl O-Ring

2шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

7

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

8.80 X 17

3шт.

8

43362

NUT,M8 x 1.25, Cl 10

3шт.

9

411048A1

HANDLE

3 Point Hitch Control

1шт.

10

404169A1

KNOB

Valve Control

1шт.

11

411070A1

ROD ASSY.

Valve Control

1шт.

12

D149287

PIN,7.9mm OD x 26.72mm L

Clevis

1шт.

13

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

14

405776A1

CLEVIS PIN,4.72mm OD x 22.28mm L

Steel

1шт.

15

86523849

COTTER PIN,1/16" x 3/4"

1шт.

16

430561A1

HOSE ASSY.,6.35mm ID x 450mm L

4th and 5th Spool To Bulkhead

2шт.

17

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl O-Ring

2шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

405838A3

HOSE ASSY.,6.35mm ID x 1630mm L

Head End

1шт.

20

405837A3

HOSE ASSY.,6.35mm ID x 1450mm L

Tilt Rod End

1шт.

21

84214699

CYLINDER,Double Acting, 31.8mm Rod, 178mm Stroke

Pitch 3 Point Hitch

1шт.

22

86982482

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 160mm Stroke

Tilt 3 Point Hitch

1шт.

23

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

Incl O-Ring

2шт.

24

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

7-8 Inch Black

1шт.

26

87317419

GROOVED PIN,25.34mm OD x 95mm L

Draft Arm

1шт.

27

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.

28

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

1 Inch

2шт.

29

495-11106

WASHER,1", SAE

2шт.
