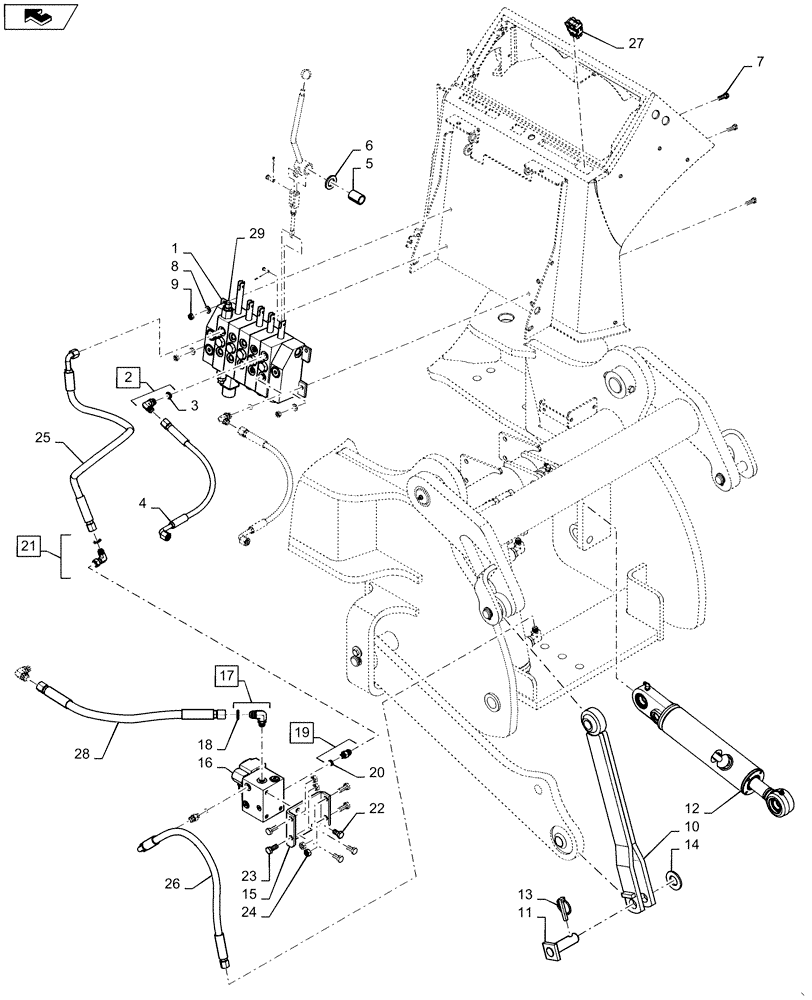

Запчасти Case 570NXT (37.110.AC[01]) - 3 POINT HITCH SINGLE TILT HOLDING VALVE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84260987

VALVE, CONTROL

3 Point Hitch 4 Spool Incl 29

1шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl O-Ring

2шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

430561A1

HOSE ASSY.,6.35mm ID x 450mm L

4th Spool To Bulk Head

2шт.

5

D150486

SPACER,19.76mm ID x 25.4mm OD x 35mm L

25.4 mm O.D

1шт.

6

86642319

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

1шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

8

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

8.80 X 17

3шт.

9

43362

NUT,M8 x 1.25, Cl 10

3шт.

10

86981810

STRUT

Stationary

1шт.

11

433059A1

PIN ASSY.

Draft Arm

1шт.

12

87602156

HYDRAULIC CYLINDER,Double Acting, 31.8mm Rod, 178mm Stroke

Pitch CE Gray

1шт.

12

87602156R

REMAN-HYD CYLINDER

Reman HYD Cylinder Pitch CE Gray

1шт.

12

87602156C

CORE-HYD CYLINDER

Return Number

1шт.

13

339466A1

PIN,8.6mm OD x 50.8mm L

Klik

1шт.

14

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

1шт.

15

84395094

BRACKET

Valve Mounting

1шт.

16

411316A1

VALVE, CONTROL

Lift Lock

1шт.

17

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

Incl O-Ring

2шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl O-Ring

2шт.

20

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

21

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

Incl O-Ring

1шт.

22

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

3шт.

23

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

24

86500689

NUT,M10 x 1.5, Cl 10

4шт.

25

405842A2

HOSE ASSY.,9.53mm ID x 950mm L

Lift Head End

1шт.

26

87561386

HOSE ASSY.,10mm ID x 855mm L, SAE 100R17

Valve To Lift Cylinder

1шт.

27

405512A1

ROCKER SWITCH

3 Point Hitch Control

1шт.

28

84477480

HOSE ASSY.,12.5mm ID x 695mm L, SAE 100R16

Return Holding Valve To Filter

1шт.

29

428250A1

VALVE, PRESSURE RELI

Incl in 1

1шт.
