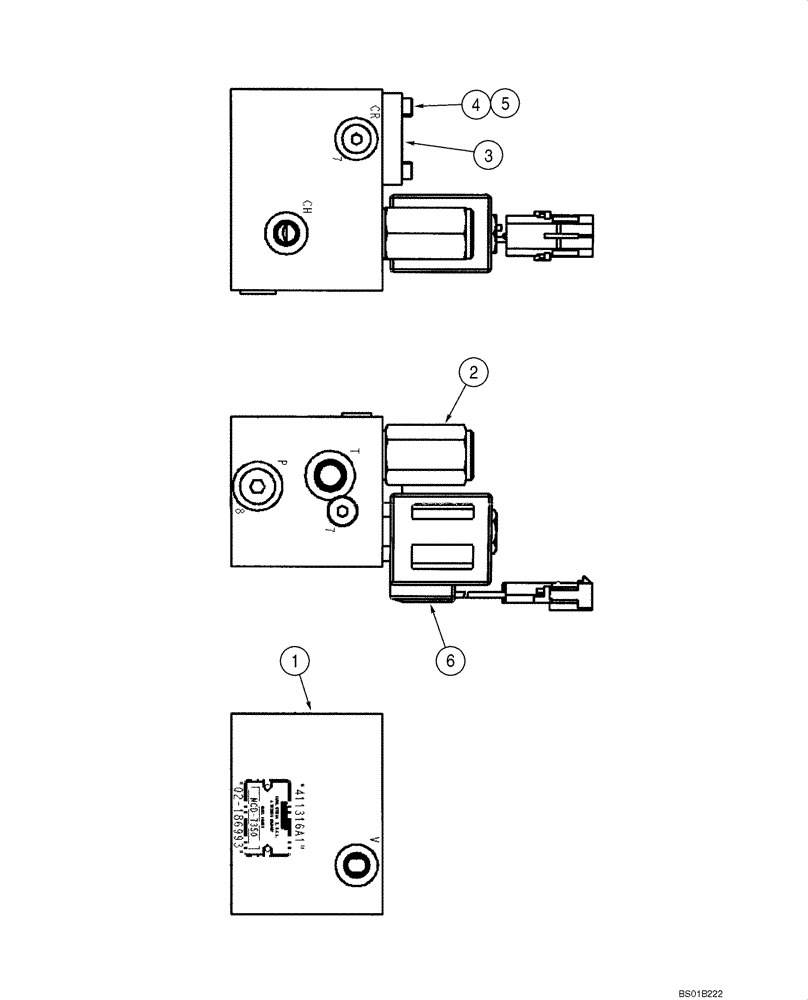

Запчасти Case 570NXT (37.100.AC[02]) - CONTROL VALVE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

411316A1

VALVE, CONTROL

Assy, Three Point Hitch Solenoid Lock Valve, Incl 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

2

149939C2

VALVE

Relief Valve, Includes 149942C1, Component Parts Not Serviced Separately, For Service Of External Seals, Order 149942C1

1шт.

149942C1

SEAL KIT

Includes (2) O-Rings and (1) Backup Ring, Component Parts Not Serviced Separately

1шт.

86982039

KIT

Cover Plate, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Cover Plate

1шт.

4

NSS

NOT SOLD SEPARAT

Screw

4шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

4шт.

6

86982038

SOLENOID VALVE

Component Parts Not Serviced Separately, Includes 86982037, 126054A1, Includes Solenoid Valve, Cartridge, Coil and Coil Nut, For Service Of External Seals, Order 126054A1

1шт.

86982037

COIL

1шт.

126054A1

SEAL PACKAGE

Includes (2) O-Rings and (2) Backup Ring, Component Parts Not Serviced Separately

1шт.
