Запчасти Case 570NXT (35.724.AG) - 3 AND 2 SPOOL LOADER CONTROL LINKAGE (35) - HYDRAULIC SYSTEMS

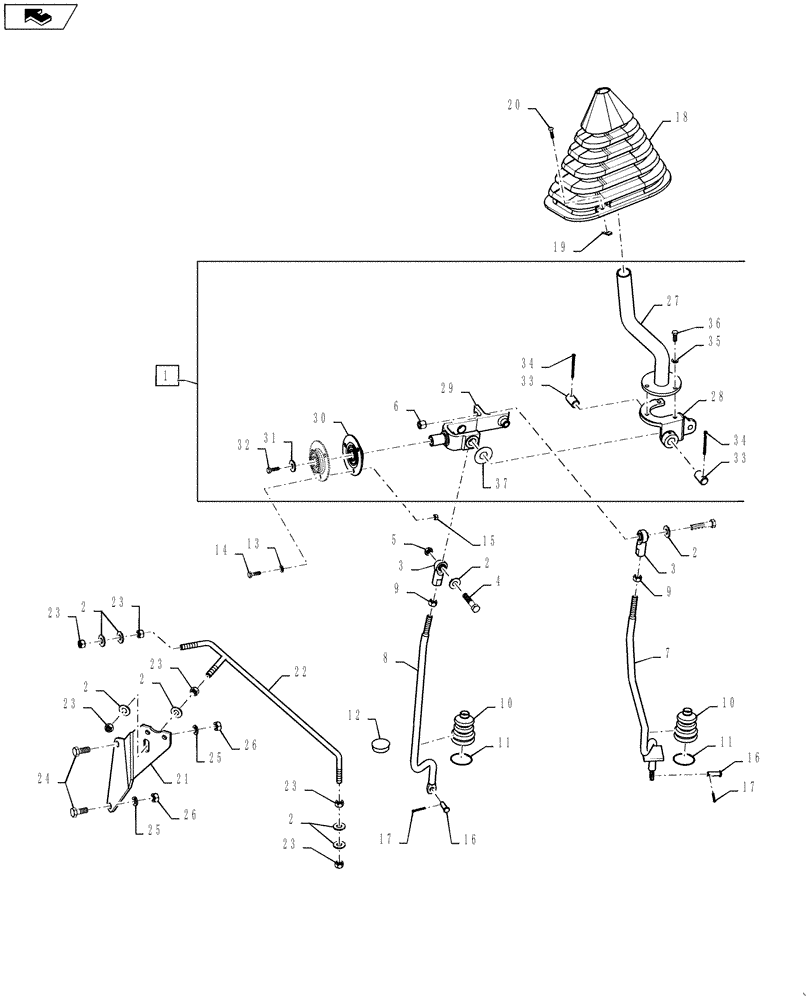

Схема запчастей Case 570NXT - (35.724.AG) - 3 AND 2 SPOOL LOADER CONTROL LINKAGE (35) - HYDRAULIC SYSTEMS
7
12
30
9
34
6
2
31
23
23
2
4
23
34
23
11
17
14
19
9
11
33
25
13
8
10
25
18
2
2
2
27
36
29
26
20
23
33
28
2
17
home
23
3
15
37
16
24
1
3
26
32
35
10
16
21
22
5

Артикул

Название

Примечание

Количество

1

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

2

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

9шт.

3

87382812

BALL JOINT HEAD,3/8" - 24

Bearing Rod

2шт.

4

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

5

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

6

892-11010

LOCK WASHER,M10

2шт.

7

87446596

THREADED ROD

Loader Dump Control

1шт.

8

87428152

THREADED ROD

Loader Lift Control

1шт.

9

425-116

NUT,3/8" - 24, Gr 5

2шт.

10

132931A1

BOOT

1/2 in Rod Rubber

2шт.

11

189109A1

SPRING,Compression, 42mm OD

Boot Retaining

2шт.

12

353-422

PLUG,Dome, 1.250" hole, Nylon

1шт.

13

87713130

WASHER,6.85mm ID x 12.75mm OD x 1.8mm Thk

3шт.

14

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

15

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

16

D149287

PIN,7.9mm OD x 26.72mm L

Clevis

2шт.

17

432-612

COTTER PIN,3/32" x 3/4"

2шт.

18

84423139

BOOT

Loader Control Rubber

1шт.

19

131-121

SPRING NUT,Tinn, U, #10-24

1шт.

20

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

1шт.

21

124646A1

SUPPORT

Park Brake

1шт.

22

180801A1

SUPPORT

Loader Control Bracket

1шт.

23

425-106

NUT,3/8"-16, Cl 5

6шт.

24

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

25

84329394

CONTROL

Loader, Incl 26 - 37

1шт.

26

231-1446

NUT,3/8" - 16, Gr 5

1шт.

27

NSS

NOT SOLD SEPARAT

Handle Loader Control, Incl in 25

1шт.

28

195615A1

SUPPORT

Control Bracket

1шт.

29

176311A1

BELLCRANK

Loader

1шт.

30

112380A1

BEARING ASSY

Retainer

2шт.

31

396-41028

WASHER,.281" x 7/8" x .098", HDN

1шт.

32

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

33

102761A1

PIN,15.91mm OD x 35mm L

Bellcrank

2шт.

34

432-828

COTTER PIN,1/8" x 1 3/4"

2шт.

35

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

3шт.

36

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

37

495-81184

WASHER,21/32" x 1 1/2" x .030"

1шт.

Выбрано товаров: 37
