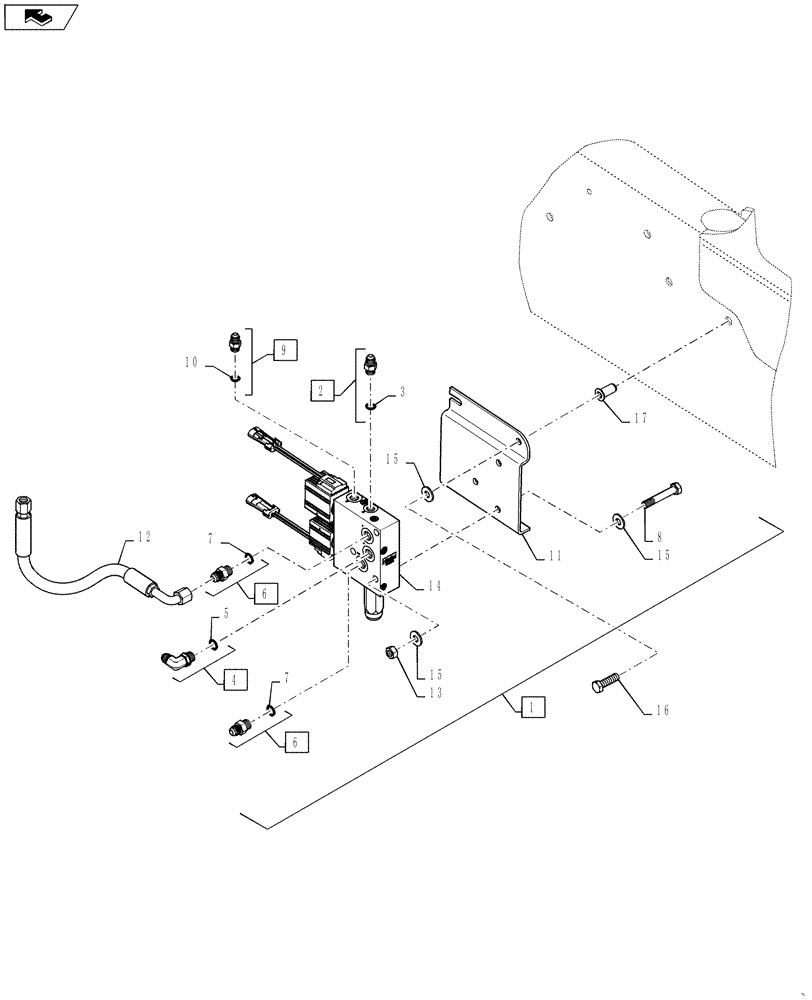

Запчасти Case 570NXT (35.723.AG) - FRONT LOADER COUPLER VALVE (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

Loader Coupler Must Order Parts Separately

1шт.

2

47765

HYD CONNECTOR,1/2"-20, 37º x 1/2"-20, O-Ring

Incl O-Ring

1шт.

3

129270

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

4

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl O-Ring

1шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl O-Ring

2шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

9

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

Incl O-Ring

1шт.

10

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

84275116

BRACKET

Coupler Valve

1шт.

12

84418227

HOSE ASSY.,10mm ID x 435mm L, SAE 100R6

Coupler To Return

1шт.

13

86500689

NUT,M10 x 1.5, Cl 10

2шт.

14

87435909

SOLENOID VALVE

Hydraulic Single

1шт.

15

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

10.65 X 23

4шт.

16

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

17

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

M10

2шт.
