Запчасти Case 570NXT (35.723.AF) - FRONT LOADER HOSES (35) - HYDRAULIC SYSTEMS

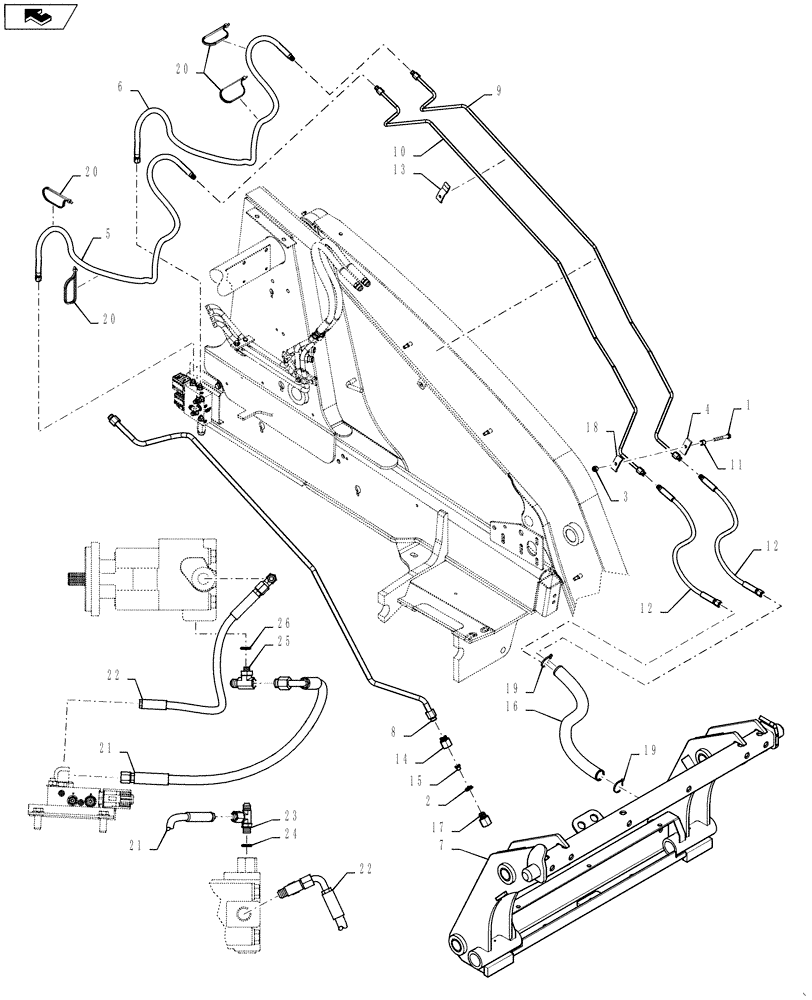

Схема запчастей Case 570NXT - (35.723.AF) - FRONT LOADER HOSES (35) - HYDRAULIC SYSTEMS
14
24
19
20
23
4
20
12
3
10
5
8
15
22
26
home
21
9
18
16
13
12
17
7
19
25
6
21
20
1
2
22
11

Артикул

Название

Примечание

Количество

1

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

1шт.

2

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

412141

NUT,M10 x 1.5, Cl 8

1шт.

4

84346489

PLATE

Tube Clamp

1шт.

5

84419261

HOSE ASSY.,6.3mm ID x 1600mm L

Loader Coupler Port B

1шт.

6

84419262

HOSE ASSY.,6.3mm ID x 1600mm L

Loader Coupler Port A

1шт.

7

87602625

COUPLING

Loader

1шт.

7

87602620

COUPLING

Loader W/Aux, Years: -01-OCT-15

1шт.

7

84265982

COUPLING

Loader W/Aux, Start Year: 01-OCT-15

1шт.

8

87716484

HYD TUBE

Loader Arm Port A

1шт.

9

87716490

HYD TUBE

Loader Coupler Port C1, Years: -01-OCT-15

1шт.

9

47832214

TUBE

Loader Coupler Port C1, Start Year: 01-OCT-15

1шт.

10

87716492

HYD TUBE

Loader Coupler Port C2, Years: -01-OCT-15

1шт.

10

47832215

TUBE

Loader Coupler Port C2, Start Year: 01-OCT-15

1шт.

11

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

12

300996A3

HYDRAULIC HOSE,1/4" ID x 772mm L

Loader Coupler, Years: -01-OCT-15

2шт.

12

84266292

HYDRAULIC HOSE,6.35mm ID x 740mm L, SAE 100R16

Loader Coupler, Start Year: 01-OCT-15

2шт.

13

302820A2

CLAMP

Loader Coupler

3шт.

14

304424A1

HYD CONNECTOR,0.875" - 14 JIC x 0.875" - 14 ORB

5/8

1шт.

15

304890A1

RESTRICTOR

Check

1шт.

16

307277A1

PROTECTIVE SLEEVE,36.87mm ID x 850mm L

Nylon Protective, Years: -01-OCT-15

1шт.

17

309674A1

HYD CONNECTOR,0.875" - 14 ORB x 0.875" - 14 ORFS

7/8 Male 7/8 Female

1шт.

18

D138055

CLAMP

Tube

3шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

4шт.

21

84418288

HOSE ASSY.,10mm ID x 650mm L

Pressure Pump To Cooler

1шт.

22

84418712

HOSE ASSY.,6.3mm ID x 595mm L

Pump To Coupler Load Sense

1шт.

23

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl O-Ring

1шт.

24

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

Incl O-Ring

1шт.

26

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Выбрано товаров: 31
