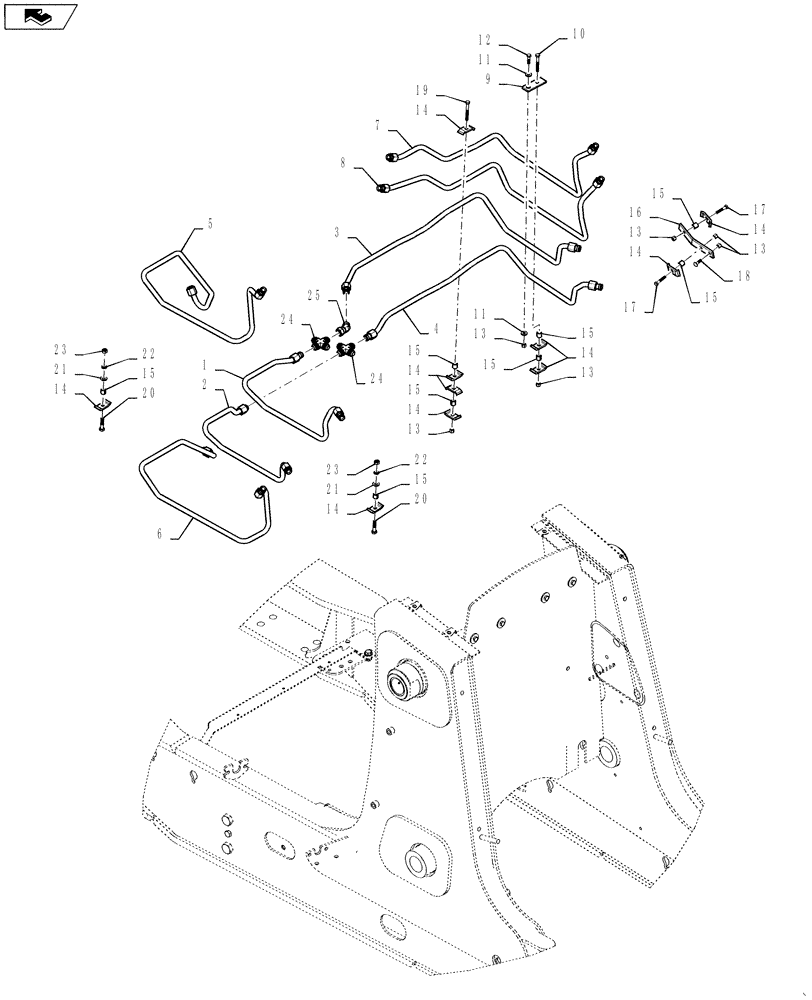

Запчасти Case 570NXT (35.723.AC) - 3 SPOOL LOADER VALVE HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

1

84381690

TUBE

RH Lift Port B

1шт.

2

84381780

TUBE

RH Lift Port A

1шт.

3

84376915

TUBE

LH Lift Port A

1шт.

4

84368904

TUBE

LH Lift Port B

1шт.

5

84380901

TUBE

Tilt Port B

1шт.

6

84380987

TUBE

Tilt Port A

1шт.

7

84379438

TUBE

4N1 Port A

1шт.

8

84380149

TUBE

4N1 Port B

1шт.

9

84293019

BRACKET

Loader Tube Clamping

1шт.

10

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

1шт.

11

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

2шт.

12

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

13

16104121

NUT,M8 x 1.25, Cl 10

6шт.

14

D138055

CLAMP

Tube

10шт.

15

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

.625 Inches O.D

8шт.

16

84293020

BRACKET

Loader Cross Tube

1шт.

17

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

2шт.

18

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

19

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

20

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

21

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

10.65 X 23

2шт.

22

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

Spring

2шт.

23

86500689

NUT,M10 x 1.5, Cl 10

2шт.

24

86513044

UNION CROSS,7/8" - 14 JIC x 7/8" - 14 JIC x 7/8" - 14 JIC x 7/8" - 14 JIC

Cross Union

2шт.

25

86512960

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Incl O-Ring

1шт.
