(35.723.AC[01]) - 2 SPOOL LOADER VALVE LINES

Запчасти Case 570NXT (35.723.AC[01]) - 2 SPOOL LOADER VALVE LINES (35) - HYDRAULIC SYSTEMS

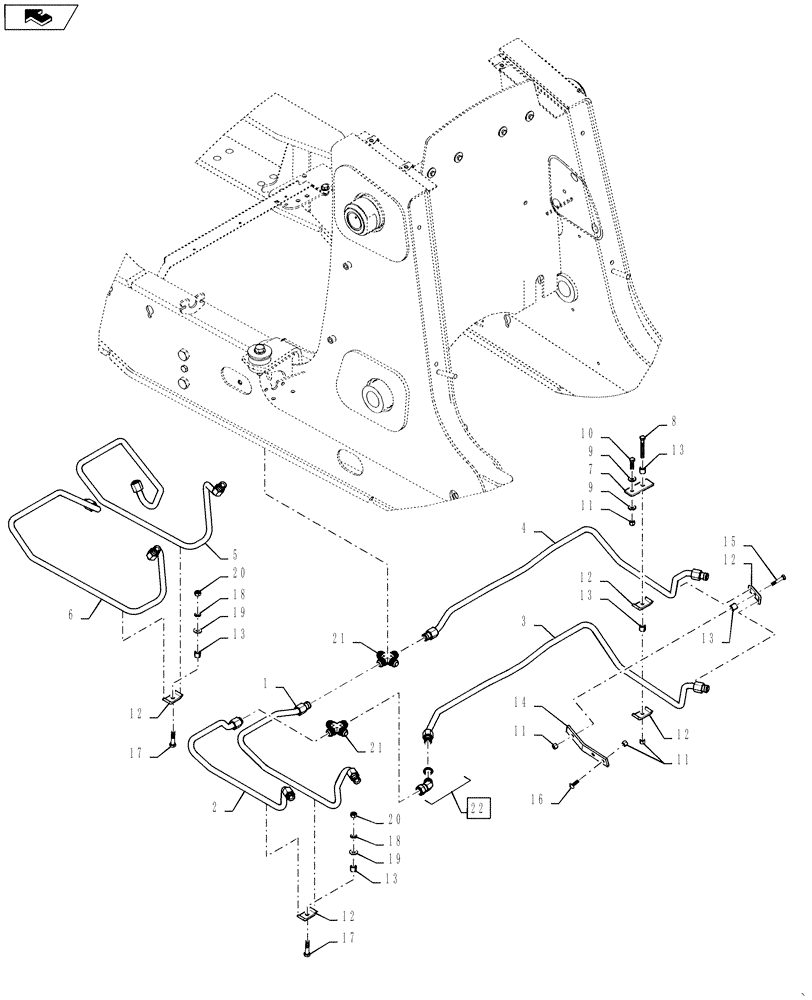

Схема запчастей Case 570NXT - (35.723.AC[01]) - 2 SPOOL LOADER VALVE LINES (35) - HYDRAULIC SYSTEMS
12
8
13
11
22
6
16
3
11
14
21
15
19
4
20
20
12
1
12
9
7
19
2
21
10
18
13
home
11
17
9
13
12
13
18
5
17
12
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84381690

TUBE

RH Lift Port B

1шт.

2

84381780

TUBE

RH Lift Port A

1шт.

3

84376915

TUBE

LH Lift Port A

1шт.

4

84368904

TUBE

LH Lift Port B

1шт.

5

84380901

TUBE

Tilt Port B

1шт.

6

84380987

TUBE

Tilt Port A

1шт.

7

84293019

BRACKET

Loader Tube Clamping

1шт.

8

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

1шт.

9

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

2шт.

10

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

11

16104121

NUT,M8 x 1.25, Cl 10

4шт.

12

D138055

CLAMP

Tube

5шт.

13

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

5шт.

14

84293020

BRACKET

Loader Cross Tube Clamping

1шт.

15

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

16

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

17

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

18

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

10.65 X 23

2шт.

19

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

20

86500689

NUT,M10 x 1.5, Cl 10

2шт.

21

86513044

UNION CROSS,7/8" - 14 JIC x 7/8" - 14 JIC x 7/8" - 14 JIC x 7/8" - 14 JIC

Cross Union

2шт.

22

86512960

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Incl O-Ring

1шт.
