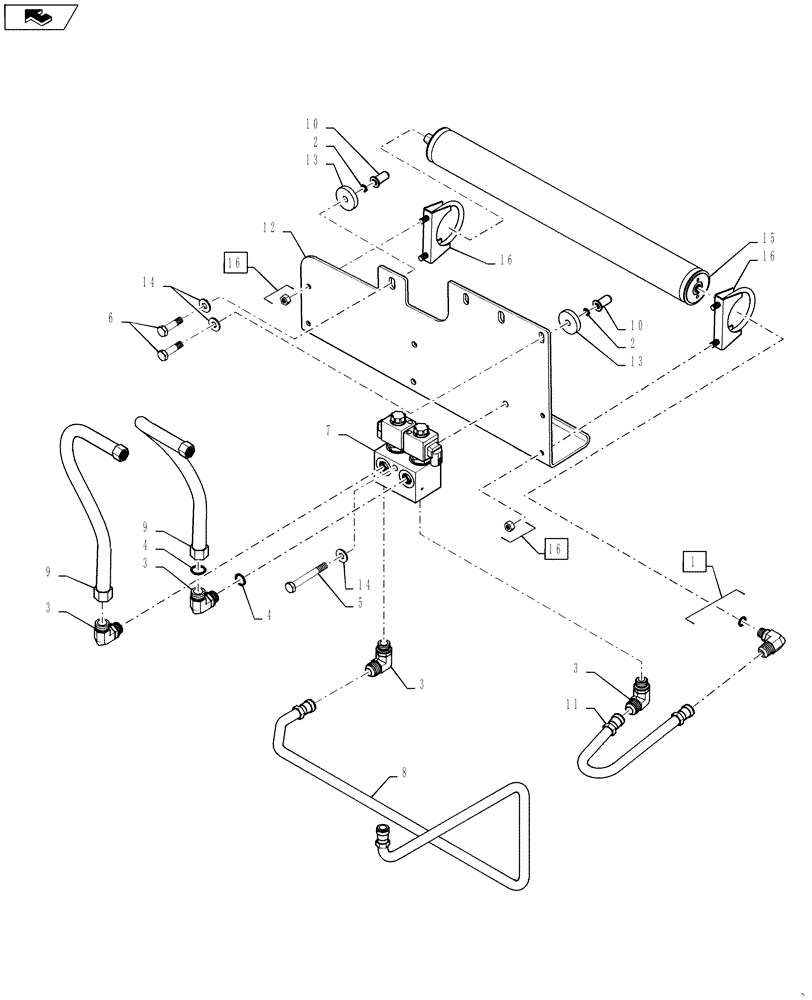

Запчасти Case 570NXT (35.701.AA) - ACCUMULATOR RIDE CONTROL (35) - HYDRAULIC SYSTEMS

1

218-5600

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, O-Ring

Incl O-Ring

1шт.

2

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

3

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

Does Not Incl O-Ring

4шт.

4

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

5

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

1шт.

6

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

7

84348784

SOLENOID VALVE

Ride Control

1шт.

8

84383824

HYD TUBE

Ride Control To Port

1шт.

9

84383997

HYD TUBE

Ride Ontrol To Port

2шт.

10

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

M10

2шт.

11

87420696

HYD TUBE

Ride Control Accumulator

1шт.

12

87421213

BRACKET

Plate Ride Control

1шт.

13

87423067

SPACER,11mm ID x 40mm OD x 8mm L

Boss

2шт.

14

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

10.65 X 23

3шт.

15

448284A1

ACCUMULATOR,275 Bar

Ride Control

1шт.

16

A13240

CLAMP,2-5/8" ID

Accumulator

2шт.
