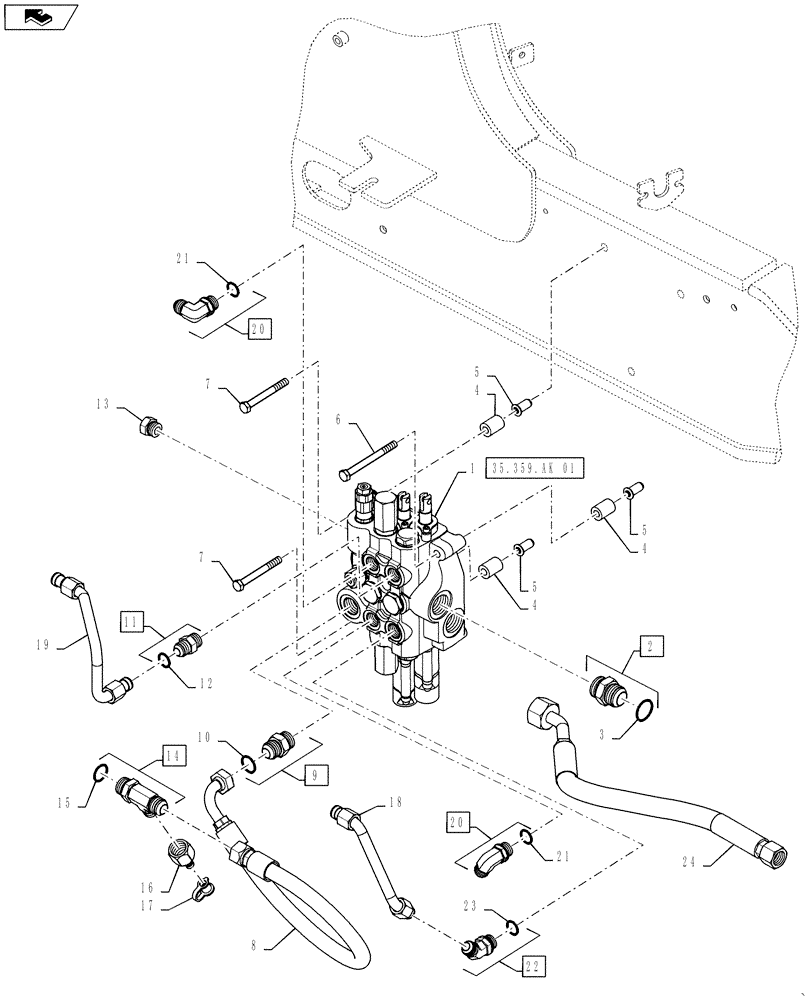

Запчасти Case 570NXT (35.359.AK) - 2 SPOOL VALVE LOADER CONTROL MOUNTING (35) - HYDRAULIC SYSTEMS

1

87351494

HYDRAULIC VALVE

Loader 2 Spool, Years: -22-JAN-14

1шт.

1

84218271

VALVE

Loader 2 Spool, Start Year: 22-JAN-14

1шт.

2

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl O-Ring

1шт.

3

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

87417599

SPACER,11mm ID x 22mm OD x 30mm Thk

Loader Valve, Years: -22-JAN-14

3шт.

5

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

M10 X 1.5

3шт.

6

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

1шт.

7

120074

BOLT,Hex, M10 x 90, 8.8

2шт.

8

87452399

HYDRAULIC HOSE,1 1/16" - 12 JIC, 90 Degree, 775mm L

Rear Pump Section, Hose Reversed after 22-Jan-2014 with a 90 Deg Fitting in Place of Ref 9

1шт.

9

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl O-Ring, Years: -22-JAN-14

1шт.

9

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

, Start Year: 22-JAN-14

1шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

Incl O-Ring

1шт.

12

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

86512512

PLUG,7/8" - 14 ORB

1шт.

14

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

Incl O-Ring

1шт.

15

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

Disconnect

1шт.

17

H434163

DUST CAP

1шт.

18

84380643

TUBE

Loader Lift Port B

1шт.

19

84380579

TUBE

Loader Lift Port A

1шт.

20

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl O-Ring

2шт.

21

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

Incl O-Ring

1шт.

23

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

84484219

HOSE ASSY.

Flow Control To Loader Valve

1шт.
