Запчасти Case 570NXT (35.359.AK[02]) - 2 SPOOL VALVE LOADER CONTROL AFTER 22-JAN-2014 (35) - HYDRAULIC SYSTEMS

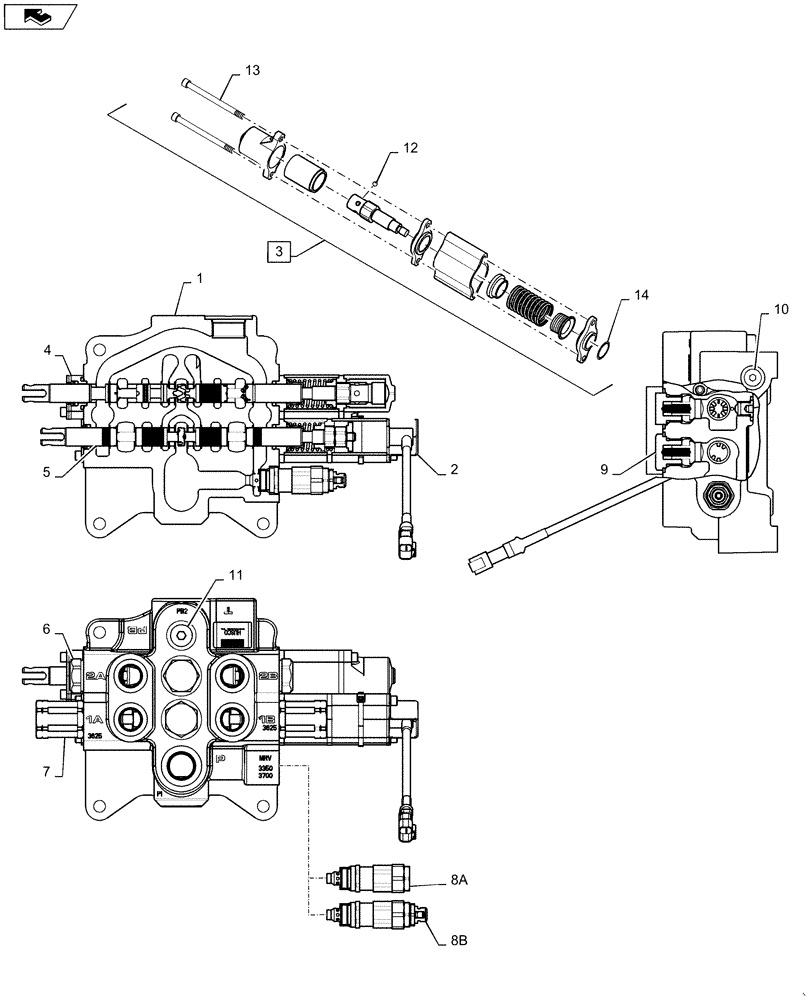

Схема запчастей Case 570NXT - (35.359.AK[02]) - 2 SPOOL VALVE LOADER CONTROL AFTER 22-JAN-2014 (35) - HYDRAULIC SYSTEMS
11
7
8a
2
6
13
3
5
4
8b
9
10
1
12
14
home

Артикул

Название

Примечание

Количество

84218271

VALVE

Two Spool Loader; Used On Models Without Pilot Controls; Incl. Ref 1 - 7, 8A, 9 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING; Order 84218271 or 84218265

1шт.

2

84296814

KIT

Magnetic Detent

1шт.

3

87426227

DETENT

Manual Lift; Incl. Ref 12 - 14

1шт.

4

84327674

KIT

Seal Plate, Mech. A Port

1шт.

5

84315193

SEAL

1шт.

6

81868381

CHECK VALVE,1-1/16" - 12

Load, Anti-Void

2шт.

87455580

O-RING KIT

Anti-Void Check Valve

1шт.

7

84296801

VALVE PRESSURE RELIE,1-1/4" - 12

Loader Dump

2шт.

8a

87570539

HYDRAULIC VALVE

Relief; Used On Models Without Pilot Controls

1шт.

8b

84327668

VALVE PRESSURE RELIE,7/8" - 14

Used On Models With Pilot Controls

1шт.

9

87426238

VALVE, CHECK

Incl. O-Ring 87455975

2шт.

10

9625178

PLUG,9/16" - 18 ORB

Incl. O-Ring 9617873

2шт.

11

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Incl. O-Ring 128825

1шт.

12

87310276

BALL BEARING

4шт.

13

87310275

SCREW

2шт.

14

87454547

O-RING

1шт.

Выбрано товаров: 17
