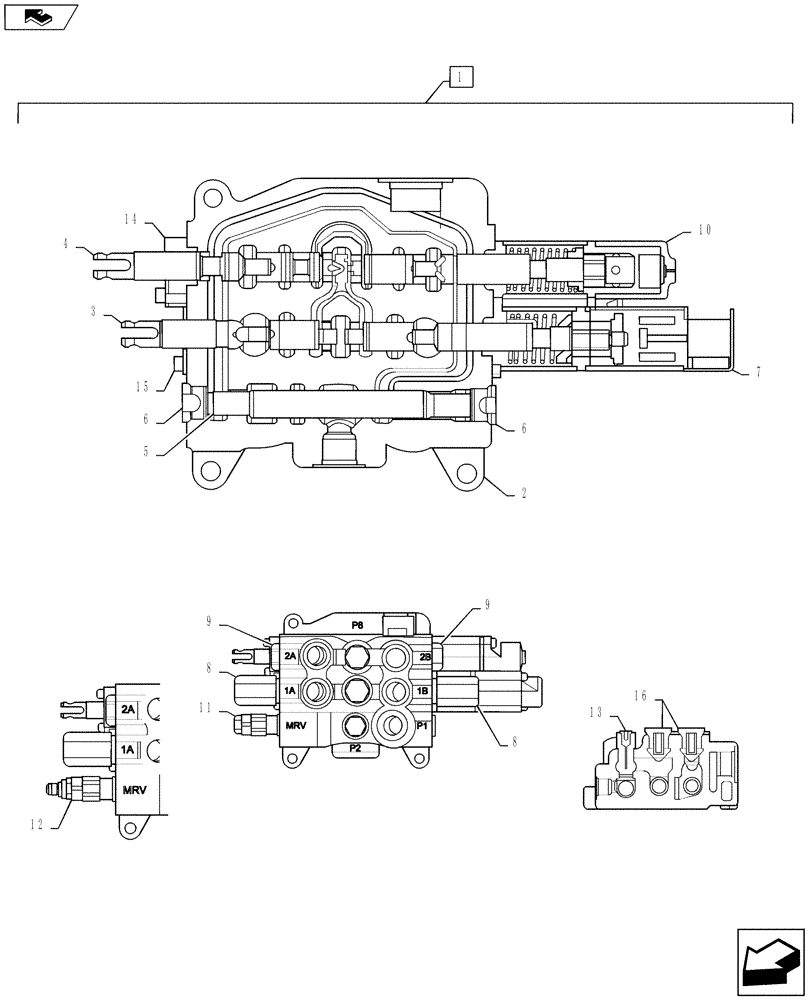

Запчасти Case 570NXT (35.359.AK[01]) - 2 SPOOL VALVE LOADER CONTROL END YEAR 22-JAN-2014 (35) - HYDRAULIC SYSTEMS

1

87351494

HYDRAULIC VALVE

Two Spool Loader, Used On Models Without Pilot Controls; Incl 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

NSS

NOT SOLD SEPARAT

Spool, Bucket

1шт.

4

NSS

NOT SOLD SEPARAT

Spool, Lift

1шт.

5

NSS

NOT SOLD SEPARAT

Spool

1шт.

6

87426233

PLUG,7/8" Male

7/8 - 14 NF, Incl (1) 87455974 O-Ring

2шт.

7

84124604

KIT

(Return to Dig) Magnetic, Bucket; Incl (1) 87454547 O-Ring, (1) 87515957 Magnet, (2) 87310278 Screw

1шт.

8

87450978

VALVE PRESSURE RELIE

Incl 87455549 Seal Kit

2шт.

9

81868381

CHECK VALVE,1-1/16" - 12

Load, Anti-Void; Incl 87455580 Seal Kit

2шт.

10

87426227

DETENT

Manual, Lift; Incl (1) 87454547 O-Ring, (2) 87310275 Scew, (4) 87310276 Ball Bearing

1шт.

11

87426717

VALVE PRESSURE RELIE

Main, Single Stage; Incl 87455551 Seal Kit

1шт.

12

87426235

VALVE PRESSURE RELIE

Main, Two Stage; Incl 87455550 Seal Kit

1шт.

13

87426716

VALVE, CHECK

Incl (1) 87455974 O-Ring, (1) 87309001 O-Ring, (1) 87446002 Poppet, (1) 87446003 Spring

1шт.

14

87440815

PLATE

Lift Spool Incl (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87455538 O-Ring, (2) 87455534 Screw

1шт.

15

87440814

KIT

Bucket Spool Incl (1) 87454547 O-Ring, (1) 87454548 Seal, (2) 87455540 Screw

1шт.

16

87426238

VALVE, CHECK

Incl 87455975 O-Ring

2шт.
