Запчасти Case 570NXT (35.359.AJ[01]) - 3 SPOOL VALVE LOADER CONTROL (35) - HYDRAULIC SYSTEMS

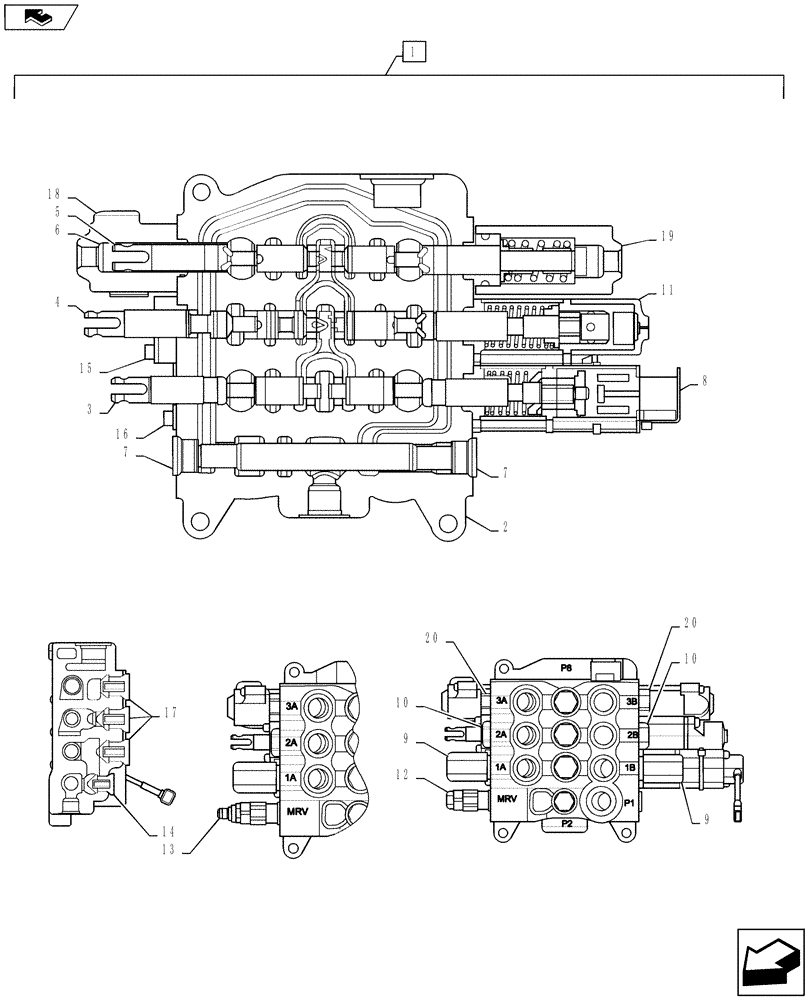

Схема запчастей Case 570NXT - (35.359.AJ[01]) - 3 SPOOL VALVE LOADER CONTROL (35) - HYDRAULIC SYSTEMS
10
10
17
2
20
7
4
3
12
18
15
20
14
9
16
1
5
11
9
8
6
home
13
7
19

Артикул

Название

Примечание

Количество

1

87593382

HYDRAULIC VALVE

Three Spool Loader, Used On Models Without Pilot Controls; Incl 2 - 20

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

NSS

NOT SOLD SEPARAT

Spool Bucket

1шт.

4

NSS

NOT SOLD SEPARAT

Spool Lift

1шт.

5

NSS

NOT SOLD SEPARAT

Spool Clam

1шт.

6

NSS

NOT SOLD SEPARAT

Spool

1шт.

7

87426233

PLUG,7/8" Male

7/8 - 14 Incl 87455974 O-Ring

6шт.

8

84124604

KIT

(Return to Dig) Incl (1) 87454547 O-Ring, (1) 87515957 Magnet, (2) 87310278 Screw; Replaces 87515955

1шт.

9

87450978

VALVE PRESSURE RELIE

Incl 87455549 Seal Kit

2шт.

10

81868381

CHECK VALVE,1-1/16" - 12

Load, Anti-Void; Incl 87455580 Seal Kit

2шт.

11

87426227

DETENT

Manual, Lift Incl (1) 87454547 O-Ring, (2) 87310275 Screw, (4) 87310276 Ball Bearing

1шт.

12

87426717

VALVE PRESSURE RELIE

Incl 87455551 Seal Kit

1шт.

13

87426235

VALVE PRESSURE RELIE

Main, Two Stage Incl 87455550 Seal Kit

1шт.

14

87426716

VALVE, CHECK

Incl (1) 87455974 O-Ring, (1) 87309001 O-Ring, (1) 87446002 Poppet, (1) 87446003 Spring

1шт.

15

87440815

PLATE

Lift Spool and Seal Assembly Incl (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87455538 O-Ring, (2) 87455534 Screw

1шт.

16

87440814

KIT

Bucket and Clam Spool and Seal Assembly Incl (1) 87454547 O-Ring, (1) 87454548 Seal, (2) 87455540 Screw

1шт.

17

87426238

VALVE, CHECK

Incl 87455975 O-Ring

3шт.

18

87757931

END

Cap Clam Spool

1шт.

19

87757932

END

Cap Clam Spool

1шт.

20

83981068

STOP PLUG,Hex, 1/16 - 12 UN

Shut-Off, Incl Seal

2шт.

Выбрано товаров: 20
